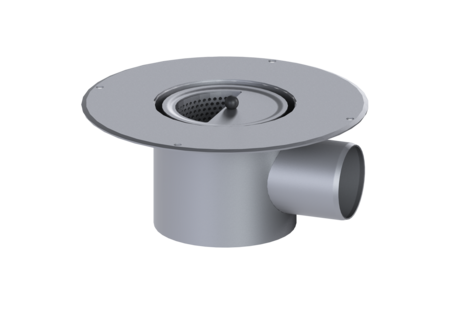

Drain body glued flange

DN100,vertical,with OT and sludge bucket

55125
55125
PDF product data sheet

KESSEL Drain body glued flange, System 185, nominal size (DN) 100, socket lateral, waterproofing layer drain body by Adhesive flange (suitable for moisture barriers)

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • Variably combinable with upper sections
Item no. 55125
GTIN 4026092107546
Price group 70

    Drain body glued flange DN100,vertical,with OT and sludge bucket
    In combination with a System 185 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The glued flange with a flange width of 50 mm is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up. Variant System: 185 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 201 mm Odour trap: included Dimensions Width: 404 mm Height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral
      Title Item no.
    55130 Ferrofix upper section Gl. flange H:15mm,206x206mm,grate, L15 55130 Show
    55131 Ferrofix upper section Gl. flange H:15mm,300x300mm,grate, L15 55131 Show
    55132 Ferrofix upper section Glued flange H:6mm,230x230mm,grate,L 15 55132 Show
    55133 Ferrofix upper section Glued flange H:6mm, 300x300mm,grate,L 15 55133 Show
    55134 Upper section Ferrofix w/o glued flange, 206x206mm, grate, L 15 55134 Show
    55135 Upper section Ferrofix w/o glued flange, 300x300mm, grate, L 15 55135 Show
    55136 Ferrofix upper section Gl. flange H:15mm, 206x206mm,insert, L15 55136 Show
    55137 Ferrofix upper section Gl. flange H:15mm, 300x300mm,insert, L15 55137 Show
    55138 Ferrofix upper section Gl. flange H:6mm,230x230mm, insert, L 15 55138 Show
    55139 Ferrofix upper section Glued flange H:6mm,300x300mm,insert,L 15 55139 Show
    55140 Upper section Ferrofix w/o glued flange, 206x206mm, insert,L 15 55140 Show
    55141 Upper section Ferrofix w/o glued flange, 300x300mm, insert,L 15 55141 Show
    55144 Ferrofix upper section Gl. flange, rd, H:15mm, 250mm, grate,L15 55144 Show
    55145 Ferrofix upper section Glued flange, rd, H: 6mm,250mm,grate,L15 55145 Show
    55146 Upper section Ferrofix w/o gl. flange, round, 250mm, grate,L15 55146 Show
      Title Item no.
      Title Item no.
    55164 Odour trap Seal. water height 70mm,horiz,304 st.st. 55164 Show
    55165 Extension section System 185 Stainless steel, connection rim 55165 Show
    55166 Extension section System 185 Stainless steel, pressure sealing flange 55166 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
    • (schlammeimer):
