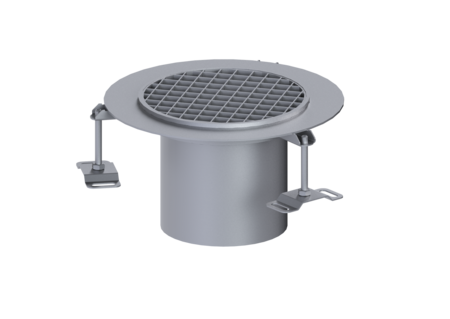

Ferrofix upper section
Glued flange, rd, H: 6mm,250mm,grate,L15
KESSEL Ferrofix upper section Glued flange, rd, H: 6mm,250mm,grate,L15, surface, length 250 mm, width 250 mm, type of cover Slotted cover, locking unlocked
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 55145 |
|---|---|
| GTIN | 4026092107706 |
| Price group | 70 |
Ferrofix upper section Glued flange, rd, H: 6mm,250mm,grate,L15
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 185 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Length: 250 mm Width: 250 mm Height: 200 mm Coverage features Type of cover: Slotted cover Locking: unlocked Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: round Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- (abdeckung_material):
- Length (laenge): 250 mm
- Width (breite): 250 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
