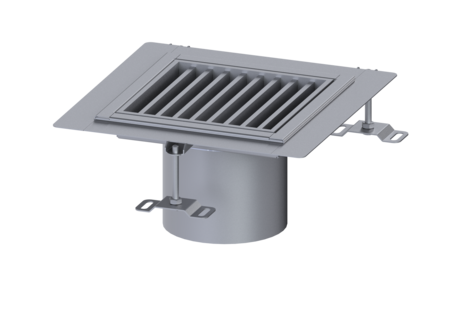

Ferrofix upper section
Glued flange H:6mm,300x300mm,insert,L 15
KESSEL Ferrofix upper section Glued flange H:6mm,300x300mm,insert,L 15, surface, length 300 mm, width 300 mm, type of cover Ladder grating, locking unlocked
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 55139 |
|---|---|
| GTIN | 4026092107645 |
| Price group | 70 |
Ferrofix upper section Glued flange H:6mm,300x300mm,insert,L 15
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 185 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Length: 300 mm Width: 300 mm Height: 200 mm Coverage features Type of cover: Ladder grating Locking: unlocked Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Ladder grating
- (abdeckung_material):
- Length (laenge): 300 mm
- Width (breite): 300 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
