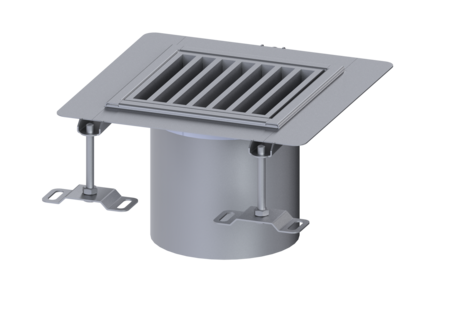

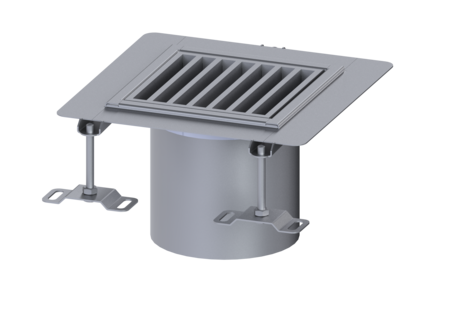

Ferrofix upper section
Gl. flange H:6mm,230x230mm, insert, M125
KESSEL Ferrofix upper section Gl. flange H:6mm,230x230mm, insert, M125, surface, length 230 mm, width 230 mm, type of cover Ladder grating, locking unlocked
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 55138 |
|---|---|
| GTIN | 4026092107638 |
| Price group | 70 |
Ferrofix upper section Gl. flange H:6mm,230x230mm, insert, M125
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 185 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Length: 230 mm Width: 230 mm Height: 200 mm Coverage features Type of cover: Ladder grating Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Ladder grating
- (abdeckung_material):
- Length (laenge): 230 mm
- Width (breite): 230 mm
- Load class (belastungsklasse): L 15 / M 125 (EN 1253-1)
