Drain body glued flange
DN100,vertical,with OT and sludge bucket
![](https://assets.kessel.de/pb/640/pb_wgsonst_55120_366446.png)
![](https://assets.kessel.de/mz/w640/mz_55120_370617.png)

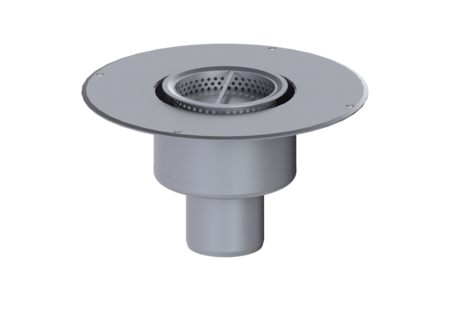

KESSEL Drain body glued flange, System 185, nominal size (DN) 100, socket vertical, waterproofing layer drain body by Adhesive flange (suitable for moisture barriers)
- Made of particularly hygienic and mechanically highly resistant stainless steel
- Variably combinable with upper sections
Item no. | 55120 |
---|---|
GTIN | 4026092107539 |
Price group | 70 |
Drain body glued flange DN100,vertical,with OT and sludge bucket
In combination with a System 185 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The glued flange with a flange width of 50 mm is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up. Variant System: 185 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 201 mm ATEX: no Odour trap: included Dimensions Width: 404 mm Height: 230 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical
Title | Item no. | ||
---|---|---|---|
![]() | Ferrofix upper section Gl. flange H:15mm,206x206mm,grate,M125 | 55130 | Show |
![]() | Ferrofix upper section Gl. flange H:15mm,300x300mm,grate,M125 | 55131 | Show |
![]() | Ferrofix upper section Glued flange H:6mm,230x230mm,grate,M125 | 55132 | Show |
![]() | Ferrofix upper section Glued flange H:6mm, 300x300mm,grate,M125 | 55133 | Show |
![]() | Ferrofix upper section w/o glued flange, 206x206mm, grate, M125 | 55134 | Show |
![]() | Ferrofix upper section w/o glued flange, 300x300mm, grate, M125 | 55135 | Show |
![]() | Ferrofix upper section Gl. flange H:15mm, 206x206mm,insert,M125 | 55136 | Show |
![]() | Ferrofix upper section Gl. flange H:15mm, 300x300mm,insert,M125 | 55137 | Show |
![]() | Ferrofix upper section Gl. flange H:6mm,230x230mm, insert, M125 | 55138 | Show |
![]() | Ferrofix upper section Glued flange H:6mm,300x300mm,insert,M125 | 55139 | Show |
![]() | Ferrofix upper section w/o glued flange, 206x206mm, insert,M125 | 55140 | Show |
![]() | Ferrofix upper section w/o glued flange, 300x300mm, insert,M125 | 55141 | Show |
![]() | Ferrofix upper section Gl. flange, rd, H:15mm, 250mm, grate,L15 | 55144 | Show |
![]() | Ferrofix upper section Glued flange, rd, H: 6mm,250mm,grate,L15 | 55145 | Show |
![]() | Ferrofix upper section w/o gl. flange, round, 250mm, grate,L15 | 55146 | Show |
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Odour trap Seal. water height 70 mm,vert,304 st.st. | 55160 | Show |
![]() | Odour trap Sealing water height 50 mm,vertical, PP | 55161 | Show |
![]() | Extension section System 185 Stainless steel, connection rim | 55165 | Show |
![]() | Extension section System 185 Stainless steel, pressure sealing flange | 55166 | Show |
![]() | Inox fire protection insert Fire prot. cartridge OD100 for System185 | 55167 | Show |
Title | Item no. |
---|
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- Socket version (stutzen_ausfuehrung):
vertical
- Odour trap (geruchsverschluss): included
- (schlammeimer):
