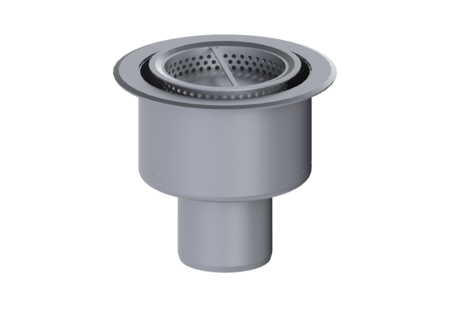

Drain body Ferrofix

DN100,vertical,with OT and sludge bucket

55100
55100
PDF product data sheet

KESSEL Drain body Ferrofix, System 185, nominal size (DN) 100, socket vertical, waterproofing layer drain body by Connection flange, outside diameter (OD) 201 mm

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • Variably combinable with upper sections
Item no. 55100
GTIN 4026092107492
Price group 70

    Drain body Ferrofix DN100,vertical,with OT and sludge bucket
    In combination with a System 185 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up Variant System: 185 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 201 mm Odour trap: included Dimensions Net weight: 5 kg Gross weight: 5 kg Width: 260 mm Height: 230 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical
      Title Item no.
    55130 Ferrofix upper section Gl. flange H:15mm,206x206mm,grate, L15 55130 Show
    55131 Ferrofix upper section Gl. flange H:15mm,300x300mm,grate, L15 55131 Show
    55132 Ferrofix upper section Glued flange H:6mm,230x230mm,grate,L 15 55132 Show
    55133 Ferrofix upper section Glued flange H:6mm, 300x300mm,grate,L 15 55133 Show
    55134 Upper section Ferrofix w/o glued flange, 206x206mm, grate, L 15 55134 Show
    55135 Upper section Ferrofix w/o glued flange, 300x300mm, grate, L 15 55135 Show
    55136 Ferrofix upper section Gl. flange H:15mm, 206x206mm,insert, L15 55136 Show
    55137 Ferrofix upper section Gl. flange H:15mm, 300x300mm,insert, L15 55137 Show
    55138 Ferrofix upper section Gl. flange H:6mm,230x230mm, insert, L 15 55138 Show
    55139 Ferrofix upper section Glued flange H:6mm,300x300mm,insert,L 15 55139 Show
    55140 Upper section Ferrofix w/o glued flange, 206x206mm, insert,L 15 55140 Show
    55141 Upper section Ferrofix w/o glued flange, 300x300mm, insert,L 15 55141 Show
    55144 Ferrofix upper section Gl. flange, rd, H:15mm, 250mm, grate,L15 55144 Show
    55145 Ferrofix upper section Glued flange, rd, H: 6mm,250mm,grate,L15 55145 Show
    55146 Upper section Ferrofix w/o gl. flange, round, 250mm, grate,L15 55146 Show
      Title Item no.
      Title Item no.
    55160 Odour trap Seal. water height 70 mm,vert,304 st.st. 55160 Show
    55161 Odour trap Sealing water height 50 mm,vertical, PP 55161 Show
    55165 Extension section System 185 Stainless steel, connection rim 55165 Show
    55166 Extension section System 185 Stainless steel, pressure sealing flange 55166 Show
    55167 Inox fire protection insert Fire prot. cartridge OD100 for System185 55167 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss): included
    • (schlammeimer):
