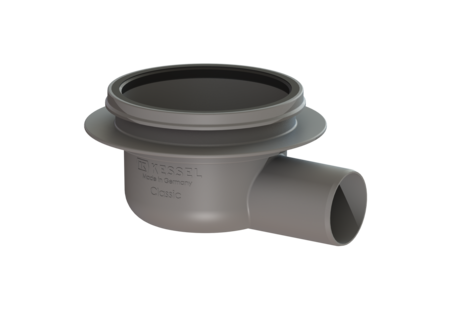

Drain body Classic bathr. drain
Sys 100, DN 50, Horizontal outlet
![](https://assets.kessel.de/pb/640/pb_wgablau_40151_172704.png)
KESSEL Drain body Classic bathr. drain, length 184 mm, nominal size (DN) 50, drainage by Point drain, socket lateral, design cover, Sealing water height mm
- Odour trap height: 50 mm
- Lip seal fixed to the drain body
- System 100 - Modular system
Item no. | 40151 |
---|---|
GTIN | 4026092029282 |
Price group | 10 |
Drain body Classic bathr. drain Sys 100, DN 50, Horizontal outlet
The drain body for Classic floor/bathroom drains is made of polymer and is equipped with a secure, reliably installed seal. Variant System: 100 Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Standard: EN 1253-2 Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: no Dimensions Net weight: 0,15 kg Gross weight: 0,2 kg Length: 184 mm Width: 156 mm Height: 90 mm Packaging dimension: length: 190 mm Packaging dimension: width: 160 mm Packaging dimension: height: 85 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral
Title | Item no. | ||
---|---|---|---|
![]() | Upper section System 100, Slotted cover, 304 SST, K 3 | 27165 | Show |
![]() | Upper section System 100, Slotted cover, anti-slip | 27176 | Show |
![]() | Upper section System 100, Slotted cover, white, K 3 | 27192 | Show |
![]() | Upper section Sys100, Kessel des cover, 304SST, L15 | 27201 | Show |
![]() | Upper section Sys 100, Oval des cover, 304 SST, L 15 | 27202 | Show |
![]() | Upper section System 100, tileable, Polymer, K 3 | 27210 | Show |
![]() | Upper section System 100, tileable, 304 SST, K 3 | 27211 | Show |
![]() | Variofix upper section System 100, Slotted cover, 304 SST, K 3 | 47901 | Show |
![]() | Variofix upper section System 100, Slotted cover, 304 SST, L 15 | 47902 | Show |
![]() | Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 | 47904 | Show |
![]() | Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 | 47905 | Show |
![]() | Variofix upper section System 100, tileable, 304 SST, K 3 | 47906 | Show |
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Adapter DN 50/40 | 27118 | Show |
![]() | Adapter DN 50/70 | 27126 | Show |
![]() | Extension section System 100, H: 161 mm | 27146 | Show |
![]() | Sludge bucket d: 110 mm | 27168 | Show |
![]() | Extension section System 100, with pressure sealing flange | 27198 | Show |
![]() | Extension section System 100, with glued flange | 27199 | Show |
![]() | Odour trap Multistop, System 100 | 43500 | Show |
![]() | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
![]() | Intermediate section with system 100 glued flange | 47900 | Show |
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
ABS
- Socket version (stutzen_ausfuehrung):
lateral
- (abdeckungsart):
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
