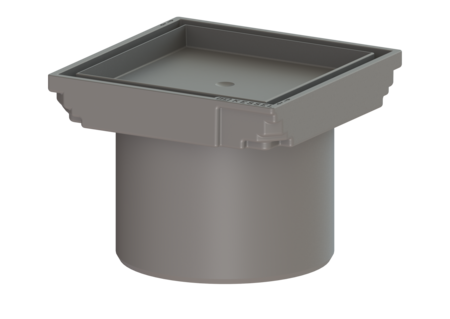

Upper section
System 100, tileable, Polymer, K 3
![](https://assets.kessel.de/pb/640/pb_wgablau_27210_172631.png)
KESSEL Upper section, height 100 mm, length 132 mm, width 132 mm, type of cover tileable cover plate, locking, frame material ABS, design cover
- Different covers selectable
- Stainless steel covers
Item no. | 27210 |
---|---|
GTIN | 4026092029084 |
Price group | 10 |
Upper section System 100, tileable, Polymer, K 3
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 General characteristics ATEX: no Dimensions Net weight: 0,2 kg Gross weight: 0,23 kg Height: 100 mm Packaging dimension: length: 110 mm Packaging dimension: width: 110 mm Packaging dimension: height: 100 mm Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Height of cover: 25 mm Frame material: ABS Load class: K 3 (EN 1253-1) Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data | |
---|---|
Test Reports and Certificates |
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
