Upper section
System 100, Slotted cover, anti-slip
![](https://assets.kessel.de/pb/640/pb_wgablau_27176_172617.png)

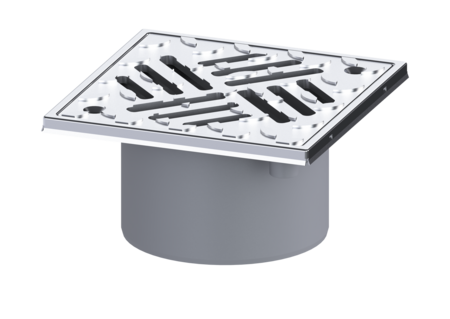

KESSEL Upper section, height 86 mm, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, frame material Stainless steel 14301, design cover
- Different covers selectable
- Stainless steel covers
Item no. | 27176 |
---|---|
GTIN | 4026092007945 |
Price group | 10 |
Upper section System 100, Slotted cover, anti-slip
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 General characteristics ATEX: no Dimensions Net weight: 0,79 kg Gross weight: 0,82 kg Height: 86 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 82 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 18 mm Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data | |
---|---|
Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
