Variofix upper section
System 100, Slotted cover, 304 SST, K 3
![](https://assets.kessel.de/pb/640/pb_wgablau_47901_172693.png)

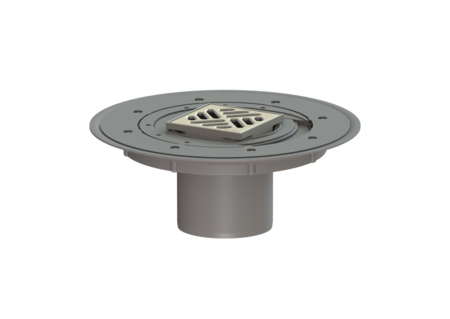

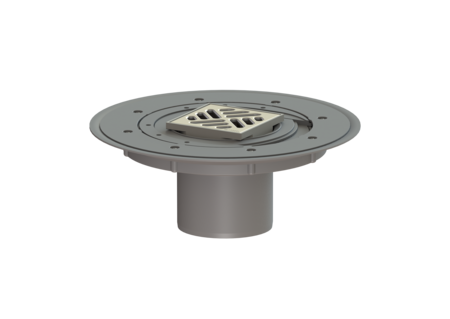

KESSEL Variofix upper section, System 100, surface Polished SST, length 100 mm, width 100 mm, type of cover Slotted cover, locking placed, design cover Kessel, Cover Stainless steel 14301
- Different covers selectable
- Including waterproofing membrane
Item no. | 47901 |
---|---|
GTIN | 4026092001424 |
Price group | 10 |
Variofix upper section System 100, Slotted cover, 304 SST, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 100 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics ATEX: no Dimensions Net weight: 1,24 kg Gross weight: 1,47 kg Diameter: 312 mm Type of height adjustability: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: Polished SST Frame material: ABS Locking: placed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 100 mm Rim length: 100 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
