Upper section

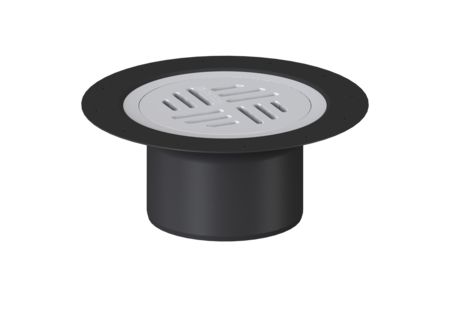

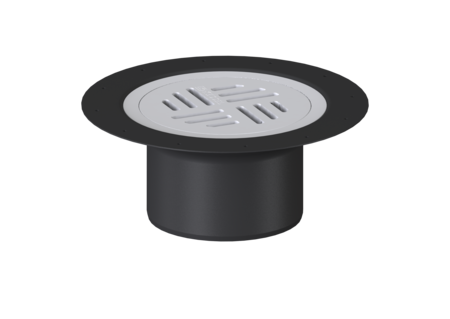

System 100, Slotted cover, white, K 3
![](https://assets.kessel.de/pb/640/pb_wgablau_27192_172615.png)
KESSEL Upper section, height 83 mm, length 200 mm, width 200 mm, type of cover Slotted cover, locking placed, frame material PA, design cover
- Different covers selectable
- Stainless steel covers
Item no. | 27192 |
---|---|
GTIN | 4026092000397 |
Price group | 10 |
Upper section System 100, Slotted cover, white, K 3
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 General characteristics ATEX: no Dimensions Net weight: 0,27 kg Gross weight: 0,33 kg Height: 83 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 82 mm Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: silver Surface: EDM Frame material: PA Locking: placed Load class: K 3 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data | |
---|---|
Test Reports and Certificates |
- Cover material (abdeckung_material):
Polymer
- Upper section material (material_aufsatzstueck):
ABS
