Pumping station Aquapump XL Pumping station Aquapump XL 8743047 - KESSEL

Pumping station Aquapump XL

Mono, GTF1400-S1, 400V

KESSEL Pumping station Aquapump XL, Mono, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), floor slab installation, pump control by, with a submersible GTF 1400 pump, operating mode S1, level measurement hydrostatic

Maximum safety
Flexible installation
Also handles large quantities of wastewater

Item no.	8743047
Price group	60

Pumping station Aquapump XL Mono, GTF1400-S1, 400V

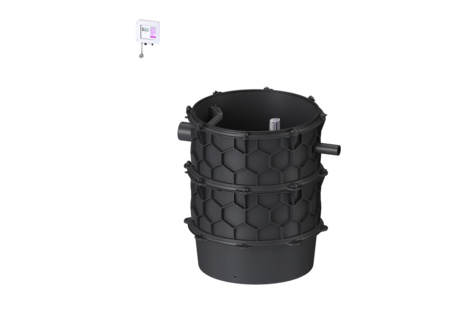

The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Type of system: Single unit Passage seal for conduit pipe (DN): 63 Passage seal for ventilation pipe (DN): 50 Installation: Wet installation Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono ATEX: no Dimensions Net weight: 150 kg Gross weight: 170 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1300 mm Width: 1300 mm Height: 1416 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Pumping volume: 350 l Pumping device Pump: GTF 1400 Number of pumps: 1 Weight, pump: 22 kg Connection type: Direct connection Rated current: 6,5 A Length of mains cable for pump: 10 m Protection class: I Insulation class: H Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 31 m³/h Max. pumping height: 10,5 m Speed: 2900 U/min Power P1: 1,5 kW Power P2: 1,1 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 6,5 A

Title	Item no.
Chamber module LW 1000 floor slab Access LW 600, 380-629 mm, Class A/B	8740000	Show
Chamber module LW 1000 floor slab Access LW 600, 380-629 mm, Class D	8740001	Show
Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3	8740002	Show
Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3	8740003	Show
Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15	8740004	Show
Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15	8740005	Show
Chamber module LW 1000 floor slab Access LW 600, 630-879 mm, Class A/B	8740006	Show
Chamber module LW 1000 floor slab Access LW 600, 630-879 mm, Class D	8740007	Show
Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3	8740008	Show
Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3	8740009	Show
Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15	8740010	Show
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15	8740011	Show
Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class A/B	8740012	Show
Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class D	8740013	Show
Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3	8740014	Show
Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3	8740015	Show
Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15	8740016	Show
Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15	8740017	Show
Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B	8740018	Show
Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D	8740019	Show
Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3	8740020	Show
Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3	8740021	Show
Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15	8740022	Show
Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15	8740023	Show
Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B	8740024	Show
Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D	8740025	Show
Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3	8740026	Show
Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3	8740027	Show
Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15	8740028	Show
Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15	8740029	Show
Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B	8740030	Show
Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D	8740031	Show
Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3	8740032	Show
Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15	8740034	Show
Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B	8740036	Show
Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D	8740037	Show
Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3	8740038	Show
Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15	8740040	Show
Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B	8740042	Show
Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D	8740043	Show
Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3	8740044	Show
Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15	8740046	Show
Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B	8740048	Show
Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D	8740049	Show
Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3	8740050	Show
Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15	8740052	Show
Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B	8740054	Show
Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D	8740055	Show
Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3	8740056	Show
Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15	8740058	Show
Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class A/B	8740060	Show
Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class D	8740061	Show
Chamber module LW 1000 floor slab Access LW 800, 2911-3160 mm, Class K 3	8740062	Show
Chamber module LW 1000 floor slab Access LW 800, 2896-3145 mm, Class A 15	8740064	Show
Chamber module LW 1000 floor slab Access LW 600, 3130-3379 mm, Class A/B	8740066	Show
Chamber module LW 1000 floor slab Access LW 600, 3130-3379 mm, Class D	8740067	Show
Chamber module LW 1000 floor slab Access LW 800, 3161-3410 mm, Class K 3	8740068	Show
Chamber module LW 1000 floor slab Access LW 800, 3146-3395 mm, Class A 15	8740070	Show
Chamber module LW 1000 floor slab Access LW 600, 3380-3629 mm, Class A/B	8740072	Show
Chamber module LW 1000 floor slab Access LW 600, 3380-3629 mm, Class D	8740073	Show
Chamber module LW 1000 floor slab Access LW 800, 3411-3660 mm, Class K 3	8740074	Show
Chamber module LW 1000 floor slab Access LW 800, 3396-3645 mm, Class A 15	8740076	Show
Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class A/B	8740078	Show
Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class D	8740079	Show
Chamber module LW 1000 floor slab Access LW 800, 3661-3910 mm, Class K 3	8740080	Show
Chamber module LW 1000 floor slab Access LW 800, 3646-3895 mm, Class A 15	8740082	Show
Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3	8740122	Show
Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3	8740123	Show
Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3	8740124	Show
Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3	8740125	Show
Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3	8740126	Show
Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3	8740127	Show
Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3	8740128	Show
Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3	8740129	Show
Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3	8740130	Show
Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3	8740131	Show
Chamber module LW 1000 floor slab Access LW 800, 2875-3124 mm, Class K 3	8740132	Show
Chamber module LW 1000 floor slab Access LW 800, 3125-3374 mm, Class K 3	8740133	Show
Chamber module LW 1000 floor slab Access LW 800, 3375-3624 mm, Class K 3	8740134	Show
Chamber module LW 1000 floor slab Access LW 800, 3625-3874 mm, Class K 3	8740135	Show
Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B	8740141	Show
Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B	8740142	Show
Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B	8740143	Show
Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D	8740158	Show
Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D	8740159	Show
Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D	8740160	Show
Chamber module LW 1000 floor slab Access LW 800, 638-887 mm, K 3, wa.co.	8740222	Show
Chamber module LW 1000 floor slab Access LW 800, 888-1137 mm, K 3, wa.co.	8740223	Show
Chamber module LW 1000 floor slab Access LW 800, 1138-1387 mm, K 3, wa.co.	8740224	Show
Chamber module LW 1000 floor slab Access LW 800, 1388-1637 mm, K 3, wa.co.	8740225	Show
Chamber module LW 1000 floor slab Access LW 800,1638-1887 mm, K 3, wa.co.	8740226	Show

	Title	Item no.

Title	Item no.
Basic alarm unit with electronic probe	20222	Show
Basic alarm unit with optical probe	20223	Show
Compressor set for air bubbling	28048	Show
Cable fastener Set for engineering chamber	28076	Show
TeleControl GSM modem for Comfort control units 230V/400V	28792	Show
Aerial with magnetic base for TeleControl Modem, Cable 2.5 m	28793	Show
Extension cable for aerial with magnetic base, L: 2 m	28794	Show
Connection box for level sensor extension	28799	Show
Pressure hose Sold by the metre, 6x4 mm 100	680071	Show
Seal for intermediate section	680125	Show
Intermediate section 250 mm, for chamber module LW 1000	680370	Show
Intermediate section 500 mm, for chamber module LW 1000	680371	Show
Connecting bolt set Set of 10	680373	Show
Replacement chain pumping statio. Stainless steel, length 2 m	680528	Show
Replacement chain pumping statio. Stainless steel, length 3 m	680529	Show
Chain for KESSEL pumpstations 4m	680530	Show
Replacement chain, pumping stat. Stainless steel, length 5 m	680531	Show
Spare part set optical probe	80888	Show
Sealing set Cable conduit, DN 100	85410	Show
Installation set Thermostat, Hygrostat	97713	Show
Outdoor Cabinet W: 590 mm,for installation control units	97714	Show
Warning beacon for outdoor cabinet	97715	Show
Outdoor Cabinet W: 460 mm, for installation control unit	97716	Show
Outdoor cabinet W: 785 mm, for control unit installation	97723	Show
Outdoor Cabinet	97724	Show
