Pumping station Aquapump XL

Duo, SPF 3000-S3

8742006
8742006
PDF product data sheet

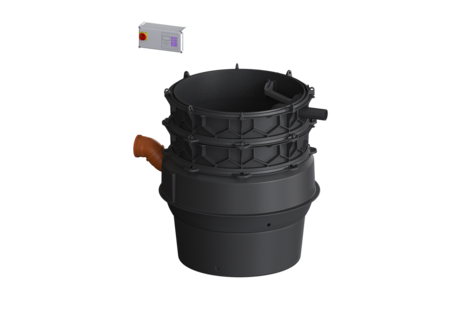

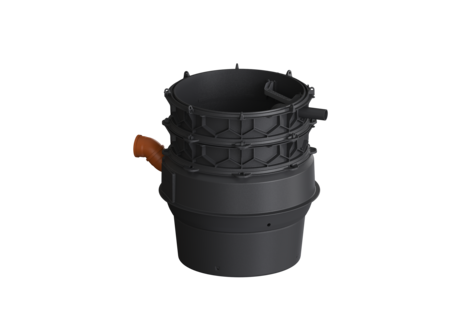

KESSEL Pumping station Aquapump XL, Duo, wastewater with sewage, underground installation, height 1403 mm, pump control by Control unit, with 2 submersible SPF 3000 pumps, operating mode S3 - 50 %, level measurement pneumatic

  • Maximum safety
  • Flexible installation
  • Hygienic advantages for maintenance and repair
Item no. 8742006
GTIN 4026092068618
Price group 60

Pumping station Aquapump XL Duo, SPF 3000-S3
The pumping station for wastewater with and without sewage is equipped with one or two submersible pumps, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has a closed pump tank (dry installation) with a screwed-on access cover. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version for deeper installation Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Access steps: yes Installation: Dry installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo ATEX: no Dimensions Net weight: 203 kg Gross weight: 227 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1295 mm Width: 1295 mm Height: 1403 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1435 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 1300 mm Distance pipe bottom inlet to tank bottom: 753 mm Distance from centre of inlet pipe to tank bottom: 833 mm Distance from inlet pipe invert to top of tank: 650 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 160 l Tank volume: 335 l Pumping device Pump: SPF 3000 Number of pumps: 2 Weight, pump: 24 kg Connection type: Direct connection Rated current: 5,4 A Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 47 m³/h Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,4 A
  Title Item no.
