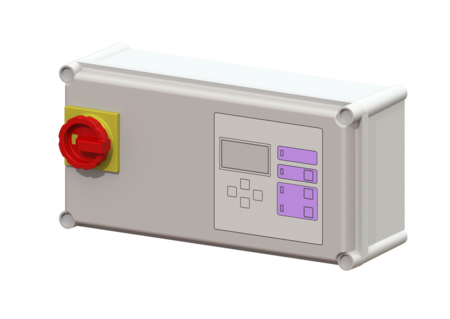

Comfort control unit
400V, Aqualift Duo, 2x4.0-6.3 A
KESSEL Comfort control unit, nominal current 4 - 6,3 A, no, potential-free contact yes, duo pump
- Self-diagnosis system (SDS)
- Potential-free contact for faults/warnings
- Reminder for when maintenance is due
| Item no. | 28758 |
|---|---|
| GTIN | 4026092055038 |
| Price group | 20 |
Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A
Comfort control unit for lifting stations or pumping stations. Suitable for 400 V double stations. Optional connection options for float switches, conductivity probes, and level probes on the terminal strip. User-friendly menu navigation on the multi-line display. Menu navigation in six languages. Simple selection of the system to be connected with preset, system-specific operating parameters. Display of current measured values. Simple adjustment of function-relevant parameters, with integrated operating hour counter. With self-diagnosis system (SDS) for monitoring pump, sensors and battery back-up. Improper installation or operating faults trigger an optical and acoustic alarm signal. Forwarding of a collective fault and alarm signal via optional potential-free contact or integrated serial interface for a GSM modem. Variant Series: ab 03/2010 Type of system: duo pump General characteristics Colour: grey System type: Duo ATEX: no Dimensions Net weight: 3,17 kg Gross weight: 3,83 kg Packaging dimension: length: 400 mm Packaging dimension: width: 250 mm Packaging dimension: height: 190 mm Pumping device Rated current: 4 - 6,3 A Control Control unit: Comfort Motor protection switch: yes Protection class control unit: IP 54 Potential-free contact: yes GSM interface: yes USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- (niveauerfassung_art):
- ATEX (atex): no
