Controlfix backwater tech. mod.

DN 150, closed channel passage

851501
851501
PDF product data sheet

KESSEL Controlfix backwater tech. mod., wastewater with sewage, outlet DN 150 mm, underground installation, number of inlets, inlet DN 150 mm

  • Komfort: expensive living or useful space is not lost
  • No system noises or unpleasant odours and soiling in the building
  • Straightforward installation thanks to low weight of the combined engineering chamber modules and variable upper sections for adaptation to the ground level
Item no. 851501
GTIN 4026092079393
Price group 60

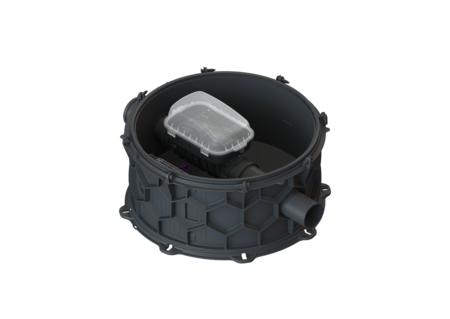

    Controlfix backwater tech. mod. DN 150, closed channel passage
    The backwater technical module is equipped with an integrated clean out Controlfix and access steps. Thanks to the modular KESSEL system, the clean out can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. Variant Chamber system: modular chamber General characteristics Colour: black Material: PE-HD Type of wastewater: with sewage Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Approval: Z-42.1-527 Dimensions Net weight: 64 kg Gross weight: 82 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 9 mm Width: 1200 mm Height: 520 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 723 mm Tank/drain body Channel: continuous channel Tank width max.: 1390 mm Distance from centre of outlet pipe to tank bottom: 267 mm Distance from centre of inlet pipe to tank bottom: 277 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm
      Title Item no.
    8740002 Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3 8740002 Show
    8740003 Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003 Show
    8740004 Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15 8740004 Show
    8740005 Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005 Show
    8740008 Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3 8740008 Show
    8740009 Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009 Show
    8740010 Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15 8740010 Show
    8740011 Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011 Show
    8740014 Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3 8740014 Show
    8740015 Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015 Show
    8740016 Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15 8740016 Show
    8740017 Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017 Show
    8740018 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B 8740018 Show
    8740019 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D 8740019 Show
    8740020 Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3 8740020 Show
    8740021 Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021 Show
    8740022 Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15 8740022 Show
    8740023 Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023 Show
    8740024 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B 8740024 Show
    8740025 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D 8740025 Show
    8740026 Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3 8740026 Show
    8740027 Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027 Show
    8740028 Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15 8740028 Show
    8740029 Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029 Show
    8740030 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B 8740030 Show
    8740031 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D 8740031 Show
    8740032 Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3 8740032 Show
    8740034 Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15 8740034 Show
    8740036 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B 8740036 Show
    8740037 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D 8740037 Show
    8740038 Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3 8740038 Show
    8740040 Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15 8740040 Show
    8740042 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B 8740042 Show
    8740043 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D 8740043 Show
    8740044 Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3 8740044 Show
    8740046 Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15 8740046 Show
    8740048 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B 8740048 Show
    8740049 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D 8740049 Show
    8740050 Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3 8740050 Show
    8740052 Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15 8740052 Show
    8740054 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B 8740054 Show
    8740055 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D 8740055 Show
    8740056 Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3 8740056 Show
    8740058 Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15 8740058 Show
    8740060 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class A/B 8740060 Show
    8740061 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class D 8740061 Show
    8740062 Chamber module LW 1000 floor slab Access LW 800, 2911-3160 mm, Class K 3 8740062 Show
    8740064 Chamber module LW 1000 floor slab Access LW 800, 2896-3145 mm, Class A 15 8740064 Show
    8740122 Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3 8740122 Show
    8740123 Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3 8740123 Show
    8740124 Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3 8740124 Show
    8740125 Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3 8740125 Show
    8740126 Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3 8740126 Show
    8740127 Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3 8740127 Show
    8740128 Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3 8740128 Show
    8740129 Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3 8740129 Show
    8740130 Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3 8740130 Show
    8740131 Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3 8740131 Show
    8740132 Chamber module LW 1000 floor slab Access LW 800, 2875-3124 mm, Class K 3 8740132 Show
    8740141 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B 8740141 Show
    8740142 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B 8740142 Show
    8740143 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B 8740143 Show
    8740158 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D 8740158 Show
    8740159 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D 8740159 Show
    8740160 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D 8740160 Show
      Title Item no.
      Title Item no.
    680370 Intermediate section 250 mm, for chamber module LW 1000 680370 Show
    680371 Intermediate section 500 mm, for chamber module LW 1000 680371 Show
    80091 Staufix SWA conversion kit DN 100-200, fr. 01/2011 80091 Show
    80102 Pumpfix F conversion kit DN 100-200, fr. 01/2012, 15 m cable 80102 Show
    80104 Staufix FKA conversion kit DN 100-200, fr. 01/2012, 15 m cable 80104 Show
      Title Item no.
    • Installation situation (einbausituation): underground installation
    • Type of wastewater (abwasserart_de): with sewage
    • Number of inlets (zulauf_anzahl): 1
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 150  mm
    • Number of outlets (anzahl_auslauf): 1
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 150  mm
