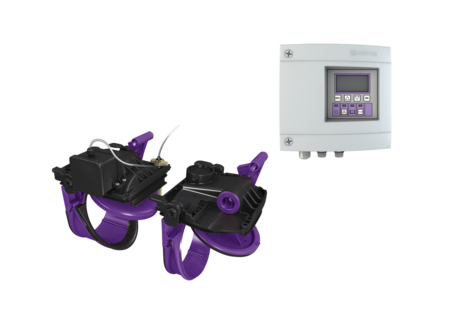

Staufix FKA conversion kit

DN 100-200, fr. 01/2012, 15 m cable

80104
PDF product data sheet

The conversion kit is equipped with a motor-driven closure system, which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. The conversion kit is used to upgrade backwater chambers LW 1000 and backwater module chambers LW 1000 with the Staufix FKA backwater valve.

Item no. 80104
GTIN 4026092051344
Price group 30

    Staufix FKA conversion kit DN 100-200, fr. 01/2012, 15 m cable
    The conversion kit is equipped with a motor-driven closure system, which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. The conversion kit is used to upgrade backwater chambers LW 1000 and backwater module chambers LW 1000 with the Staufix FKA backwater valve. General characteristics Standard: EN 13564 Nominal size (DN): 100-200 Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: for wastewater with and without sewage Backwater protection: Type 3 Type de protection moteur: IP 68 (3m/48h) Cable length: 15 m Dimensions Net weight: 7,83 kg Gross weight: 8,82 kg Packaging dimension: length: 588 mm Packaging dimension: width: 388 mm Packaging dimension: height: 400 mm Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Manuals
    Declaration of Performance
    • Nominal size (DN) (nennweite): 100-200
    • Control unit (schaltgeraet): Comfort
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
