Backwater lifting station Ecolift

DN 200, exposed

21200
21200
PDF product data sheet

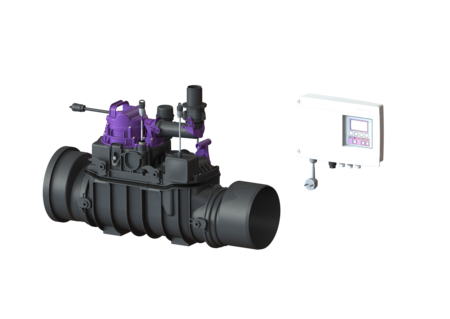

KESSEL Backwater lifting station Ecolift, wastewater with sewage, exposed drainage pipe, with a submersible SPZ 1000 pump, outside diameter (OD) 200 mm, level measurement optical probe

  • Hybrid function: uses the natural fall to the sewer - pump is only used in case of backwater
  • Quiet and energy-saving
  • Double safety due to backwater flap and pressure loop
Item no. 21200
GTIN 4026092046791
Price group 20

Backwater lifting station Ecolift DN 200, exposed
The backwater lifting station for faecal and non-faecal wastewater is equipped with one pump and one motor-driven closure system. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the motor-driven closure system to close automatically. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater above the backwater level and into the sewer. Connection hole in the drain body for installation in the ground, incl. seal for pressure pipe and cable conduit. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Passage seal for conduit pipe (DN): 50 Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-487 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 20 kg Gross weight: 25,5 kg Groundwater resistant from lower edge of base section: 2000 mm Vertical drop between inlet and outlet: 9 mm Length: 720 mm Width: 243 mm Height: 405 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Nominal pressure (PN): 6 Pressure pipe connection (OD): 40 mm Socket version: including spigot and socket Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Control unit: Comfort Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: yes GSM interface: no USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
Commissioning Backwater lifting station Ecolift 80203 Show
Maintenance Ecolift 80303 Show
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
80077 Clearance code for potential-free contact 80077 Show
80889 Cable accessories Extension for probe 80889 Show
80890 Cable accessories Extension for motor 80890 Show
80891 Cable accessories Extension for pump 80891 Show
  Title Item no.
21056 Lockable cover Ecolift Outlet side 21056 Show
28052 Lockable cover Inlet side 28052 Show
28060 Ventilation with activated carbon filter 28060 Show
28061 Active carbon filter 5 each 28061 Show
28071 Control unit Comfort 230 V, Ecolift, Pumpfix F from 01/2011 28071 Show
28351 Replacement pump KTP/SPZ 1000 230 V, cable length 5 m 28351 Show
680018 One-handed closure for backflow preventer 680018 Show
680034 Battery 9 V block 680034 Show
680101 Flap holder for motor-driven and mechanical flap 680101 Show
680102 Pressure pipe connection Ecolift, installation with exposed pipe 680102 Show
70319 Seal set Pumpfix, Ecolift 70319 Show
80038 Backwater flap motor-driven, with flap holder 80038 Show
80039 Slide-in flap housing for motorised flap with flap holder 80039 Show
80076 Drive motor plug-in ready, 5 m cable 80076 Show
80888 Spare part set, optical probe 5 m cable 80888 Show
80892 Adapter Set optical probe 80892 Show
83084 Spigot DN 200, with seal 83084 Show
83088 Socket DN 200, with seal 83088 Show
  • Nominal size (DN) (nennweite): 200
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241795
  • Installation situation (einbausituation): exposed drainage pipe
  • Type of wastewater (abwasserart_de): with sewage
  • Length (laenge): 720  mm
  • Width (breite): 243  mm
