Slotted and box channels

Up to six metres long, tough and extremely durable: These are our steel option for industry – completely pre-assembled or individually made to measure.

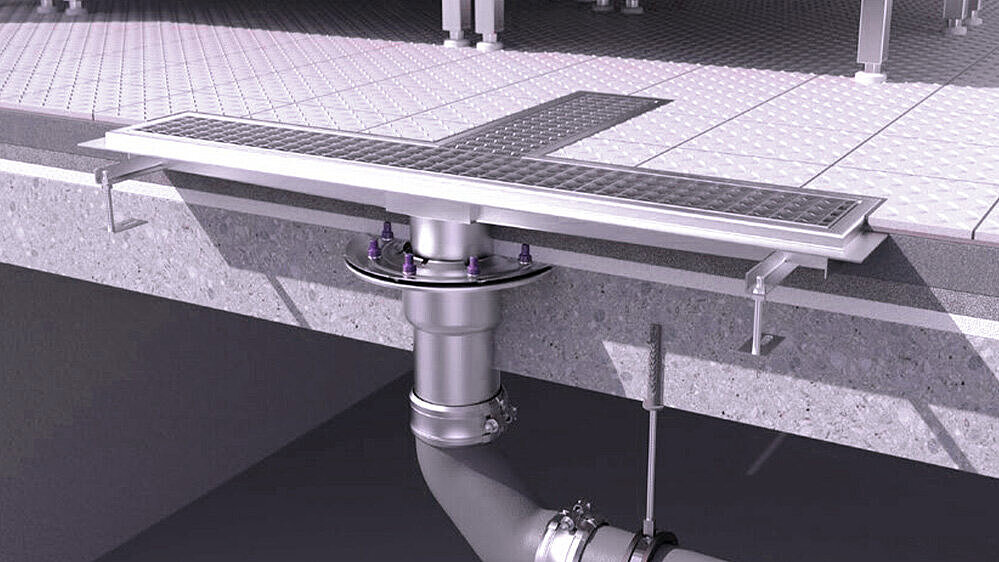

Stainless steel drainage channel in a kitchen.

The slotted and box channels made of stainless steel are not only particularly long – they are also highly durable solutions for the drainage of commercial premises where special hygiene requirements apply. The stainless steel grade 1.4301 (1.4571 on request) used makes them suitable for even the most demanding applications, such as in food processing companies or swimming pools. The many customisation possibilities and optional accessories facilitate drainage solutions that are tailored to your property.

Advantages
Flange heights
Article Overview

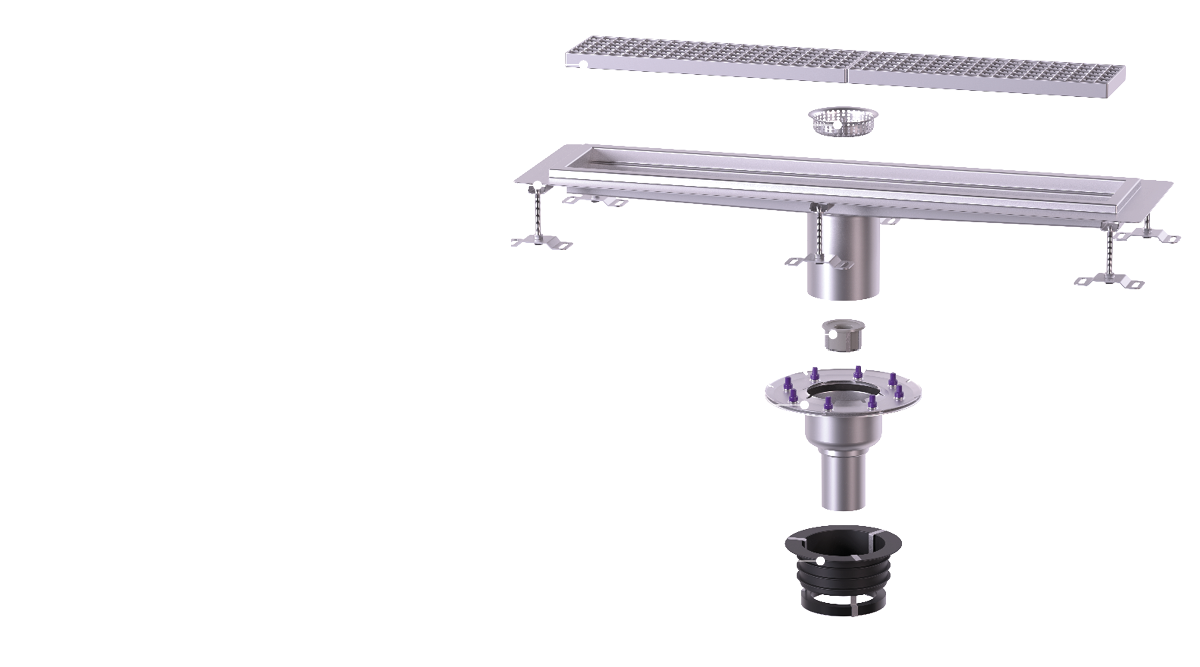

The design at a glance

The channel is made up of different components, all of which interlock – from the drain body to the upper section.

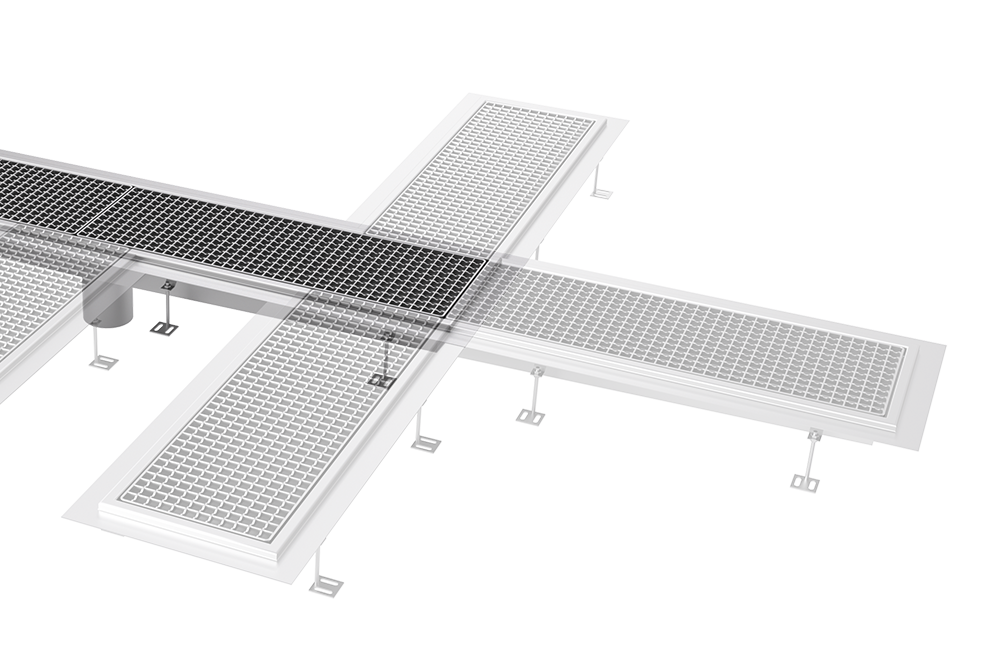

Box channels can be realised in many shapes.

A great shape

Each property has its own characteristics, each application has different requirements. With various sizes and shapes, the channels adapt perfectly to even the most irregularly shaped spaces, for example with the help of a T-piece, an L-piece or a completely customised shape.

Anti-slip effect

The risk of accidents increases in areas where water, oil or dirt can make the floor slippery. This is a problem, especially on walk-on and drive-on surfaces. This is why our floor drains can be fitted with upper sections: Available as a fluted plate cover (R11) or as a grated cover (R12).

More scope for adjustments

As an option, we also offer our Ferrofix channels, trays and floor drains with the Variofix stainless steel outlet socket. It offers flexibility for the installation of channels and floor trays as deviations of up to 5 millimetres per socket in any direction, can be compensated for.

More information

The right flange for every floor

Whether tiled or sealed with epoxy resin, whether a new build or a renovation: You have the option of choosing between four different options for the flange. This gives absolute freedom for the installation, regardless of the floor covering.

Ferrofix slotted channel

With glued flange 6 mm

	Load class	Length	Width	Item no.
6202141	L 15 (EN 1253-1)	1,400 mm	17 mm	6202141	Show

Ferrofix box channel

With glued flange 15 mm

	Load class	Type of cover	Length	Width	Item no.
6015050	L 15 (EN 1253-1)	Slotted cover	514 mm	156 mm	6015050	Show
6015100	L 15 (EN 1253-1)	Slotted cover	1,014 mm	156 mm	6015100	Show
6015150	L 15 (EN 1253-1)	Slotted cover	1,514 mm	156 mm	6015150	Show
6015200	L 15 (EN 1253-1)	Slotted cover	2,014 mm	156 mm	6015200	Show
6030050	L 15 (EN 1253-1)	Slotted cover	550 mm	300 mm	6030050	Show
6030100	L 15 (EN 1253-1)	Slotted cover	1,050 mm	300 mm	6030100	Show
6030150	L 15 (EN 1253-1)	Slotted cover	1,550 mm	300 mm	6030150	Show
6030200	L 15 (EN 1253-1)	Slotted cover	2,050 mm	300 mm	6030200	Show

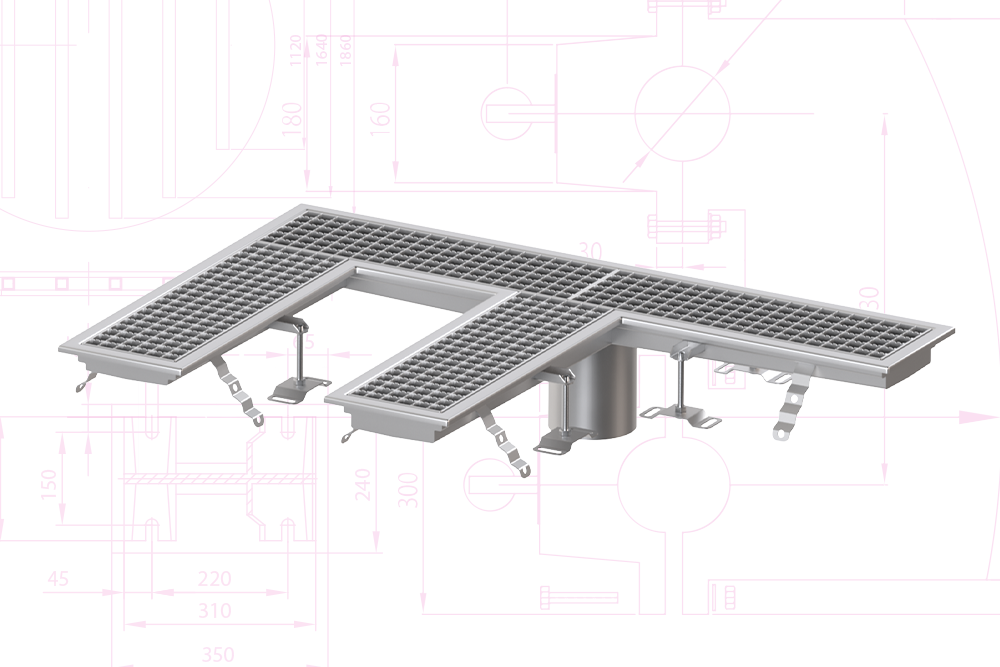

Gutter made of stainless steel according to the customer's wishes.

Not found the right product?

In addition to our existing range of drains and channels, we also develop customised solutions at the customer's request for special demands in terms of shape,
function and dimensioning.

Individual solutions
