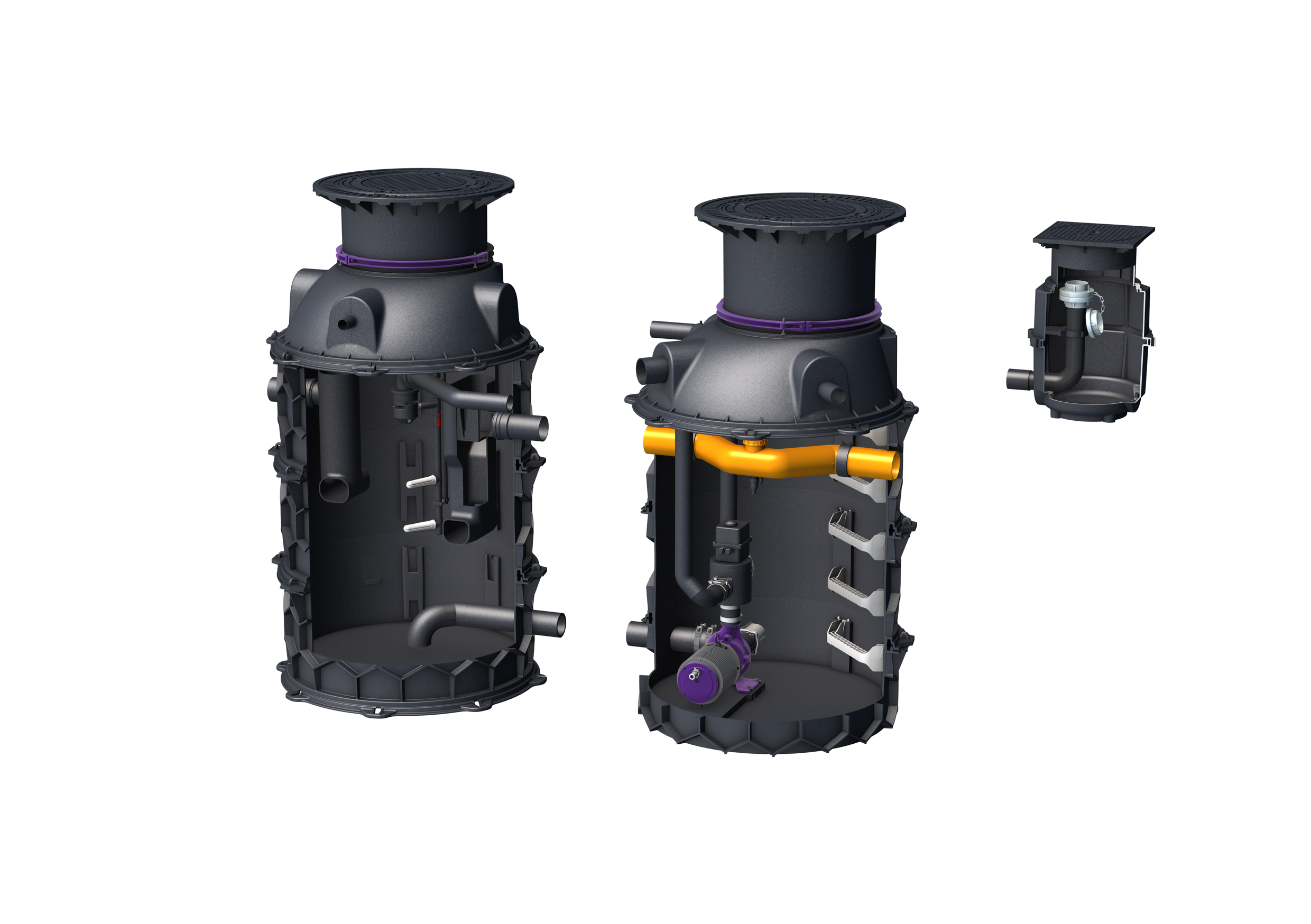

EasyClean ground Auto Mix & Pump grease separator

The all-rounder for underground installation.

As good as it gets. The EasyClean ground Auto Mix & Pump grease separator simply has everything: program-controlled, fully-automatic disposal and rinsing equipment, shredder-mix system, disposal pump,, direct disposal pipe and control unit. The contents of the closed tank are disposed of through permanently installed pipes into the disposal vehicle. The system’s own pimp is used if the disposal pipe is so long that the disposal vehicle’s pump is not sufficient. The shredder-mix system is used to circulate and homogenise the contents of the tank for easy disposal.

The EasyClean ground Auto Mix & Pump grease separator is available for load classes A/B and D as well as in nominal sizes NS 1 to NS 10, which are sufficient for most businesses such as restaurants and hotels. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages  Article overview

The EasyClean ground Auto Mix & Pump combines all advantages in one unit:

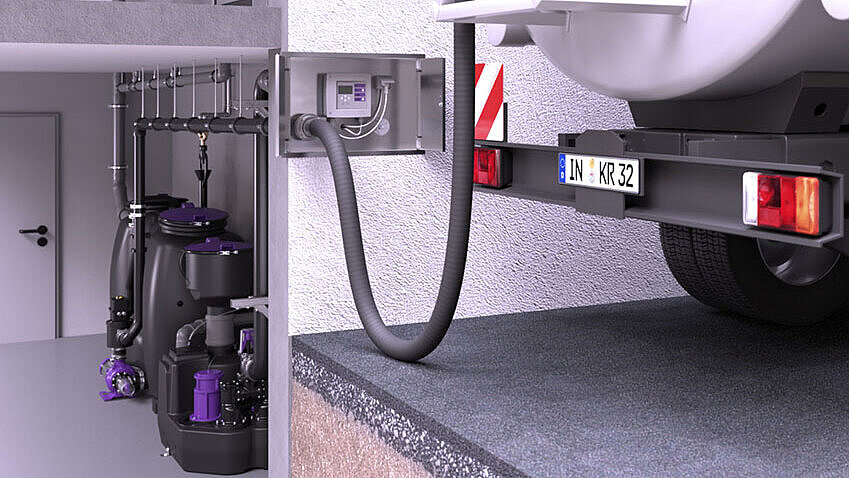

  • Direct disposal: Disposal via the direct disposal pipe – without opening the tank.
  • No odour emissions: The shredder-mix system ensures odourless disposal and cleaning.
  • Central control:  The shredder-mix system and refill inlet can be controlled via the control unit.
  • Disposal pump: For installation situations in which the disposal vehicle can no longer extract the wastewater.
  • Fully automatic: The disposal and rinsing take place fully automatically and program-controlled.

Variable installation depths

Individual installation depths, continuous adaptation to the ground level and compensation for the ground covering settling are possible thanks to the telescopic polymer upper sections.

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment

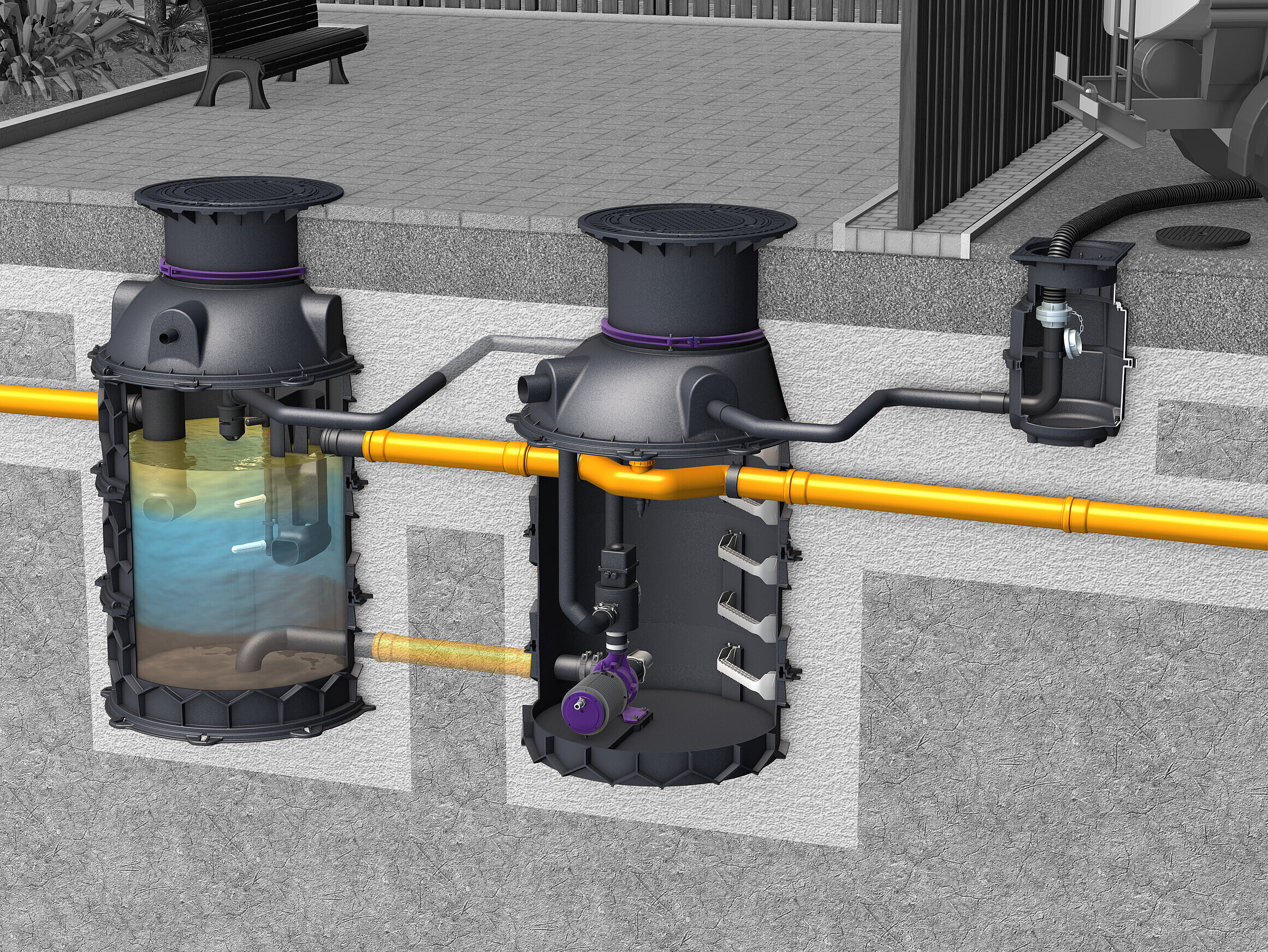

EasyClean ground Auto Mix & Pump in the engineering chamber


Installation in the ground, frost-free depth 1200 mm

  Load classInstallation depthNominal size (NS) Item no.
93001/120D-PVS-TS93001/120D-PVS-TS D 400 (EN 124) 1,020  mm 1 93001/120D-PVS-TS
Show
93004/120D-PVS-TS93004/120D-PVS-TS D 400 (EN 124) 1,020  mm 4 93004/120D-PVS-TS
Show
93007/120D-PVS-TS93007/120D-PVS-TS D 400 (EN 124) 975  mm 7 93007/120D-PVS-TS
Show
93010/120D-PVS-TS93010/120D-PVS-TS D 400 (EN 124) 975  mm 10 93010/120D-PVS-TS
Show

  Load classInstallation depthNominal size (NS) Item no.
93001/120B-PVS-TS93001/120B-PVS-TS B 125 (EN 124) 760  mm 1 93001/120B-PVS-TS
Show
93004/120B-PVS-TS93004/120B-PVS-TS B 125 (EN 124) 760  mm 4 93004/120B-PVS-TS
Show
93007/120B-PVS-TS93007/120B-PVS-TS B 125 (EN 124) 715  mm 7 93007/120B-PVS-TS
Show
93010/120B-PVS-TS93010/120B-PVS-TS B 125 (EN 124) 715  mm 10 93010/120B-PVS-TS
Show

Installation in the ground, frost-free depth 1700 mm

  Load classInstallation depthNominal size (NS) Item no.
93001/170B-PVS-TS93001/170B-PVS-TS B 125 (EN 124) 1,260  mm 1 93001/170B-PVS-TS
Show
93002/170B-PVS-TS93002/170B-PVS-TS B 125 (EN 124) 1,260  mm 2 93002/170B-PVS-TS
Show
93004/170B-PVS-TS93004/170B-PVS-TS B 125 (EN 124) 1,260  mm 4 93004/170B-PVS-TS
Show
93007/170B-PVS-TS93007/170B-PVS-TS B 125 (EN 124) 1,215  mm 7 93007/170B-PVS-TS
Show
93010/170B-PVS-TS93010/170B-PVS-TS B 125 (EN 124) 1,215  mm 10 93010/170B-PVS-TS
Show

  Load classInstallation depthNominal size (NS) Item no.
93002/170D-PVS-TS93002/170D-PVS-TS D 400 (EN 124) 1,520  mm 2 93002/170D-PVS-TS
Show
93004/170D-PVS-TS93004/170D-PVS-TS D 400 (EN 124) 1,520  mm 4 93004/170D-PVS-TS
Show
93007/170D-PVS-TS93007/170D-PVS-TS D 400 (EN 124) 1,475  mm 7 93007/170D-PVS-TS
Show
93010/170D-PVS-TS93010/170D-PVS-TS D 400 (EN 124) 1,475  mm 10 93010/170D-PVS-TS
Show

Not found the right product?

In addition to our standard grease separators we also develop individual solutions on request for special requirements in terms of form, function and dimensioning.

Customised solutions
