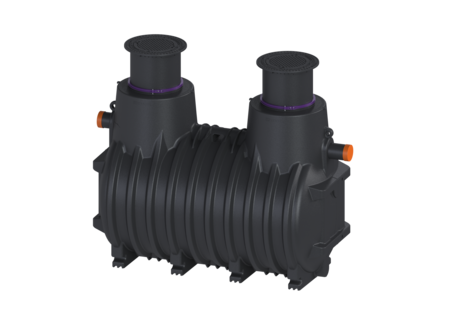

EasyOil oil/fuel separator
NS 15, Class II, 5800 l, D, In/outlet PE
KESSEL EasyOil oil/fuel separator, nominal size 15, load class D 400, sludge trap capacity 5000 l, type of disposal manual with suction hose, total volume 5800 l
- Permanent leak tightness up to ground level
- Resistant to and suitable for up to 100 % share of biodiesel (FAME)
- Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
| Item no. | 99615.80DEX |
|---|---|
| Price group | 60 |

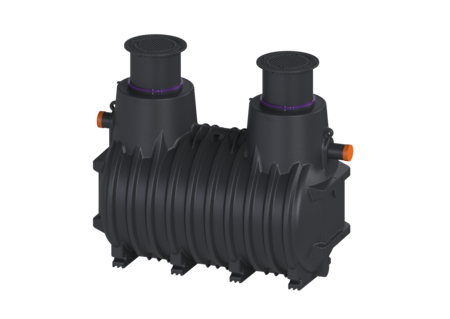

EasyOil oil/fuel separator NS 15, Class II, 5800 l, D, In/outlet PE
The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Nominal size (NS): 15 Type of disposal: manual with suction hose Coalescence insert: no Load-bearing capacity (DIN 19901): E4 General characteristics Separator class: II Dimensions Net weight: 636 kg Gross weight: 643 kg Groundwater resistant from lower edge of base section: 1810 mm Excess depth: 130 mm DSC: 700 - 1.500 T-DSC: 180 Max. length: 3460 mm Installation depth: 870 - 1250 mm Required access area, length: 3110 mm Required access area, width: 1760 mm Packaging dimension: length: 3060 mm Packaging dimension: width: 1760 mm Packaging dimension: height: 2300 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1600 mm Distance pipe bottom inlet to tank bottom: 1630 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Total volume: 5800 l Contents of sludge trap: 5000 l Storage quantity of light liquid: 470 l Control Control unit: no
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
 | Sampling chamber LW 1000, DN 200, Class B | 9151020B | Show |
 | Extension section System 400, H: 600 mm, can be shortened | 915402 | Show |
 | Sampling chamber DN 200, Load class A | 915883A | Show |
 | Sampling chamber DN 200, Class B | 915883B | Show |
 | Access panel for mounting on-wall | 917413 | Show |
 | Access panel for in-wall installation | 917414 | Show |
 | Extension section d: 600 mm, Extension 500 mm | 917460 | Show |
 | Oil suction disposal connection DN 200 | 917808 | Show |
 | Sludge extraction system DN 200 | 917809 | Show |
 | Layer thickness measuring device SonicControl, type OA | 917826 | Show |
 | Layer thickness measuring device SonicControl, type O | 917828 | Show |
 | Measuring device SonicControl, Type A | 917830 | Show |
 | Cable extension 10 m, for SonicControl LFA | 917861 | Show |
| Cable extension 20 m, for SonicControl LFA | 917862 | Show |
| Cable extension 30 m, for SonicControl LFA | 917863 | Show |
| Title | Item no. |
|---|
- Nominal size (NS) (nenngroesse): 15
- Load class (belastungsklasse): D 400 (EN 124)
- Installation depth (einbautiefe): 870 mm
- Total volume (gesamtvolumen): 5,800 l
