Sludge extraction system
DN 200

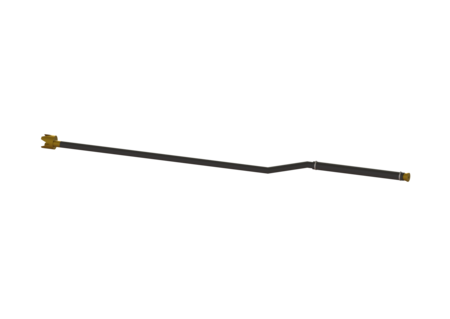

KESSEL Sludge extraction system DN 200, volume 116,84 dm³
| Item no. | 917809 |
|---|---|
| GTIN | 4026092035627 |
| Price group | 60 |
Sludge extraction system DN 200
Sludge extraction system for suction of the accumulating sludge volume, for connection option disposal vehicle, consisting of suction pipe d: 50 mm with sludge suction funnel, 0.5 m suction hose d: 50 mm for individual adaptation to the top section, made of NBR with steel wire spiral and copper strands, with connected Storz Suction coupling 52 C and identification plate as well as installation kit for separator with inlet dimension DN 200 General characteristics Nominal size (DN): 200 Dimensions Packaging dimension: length: 660 mm Packaging dimension: width: 485 mm Packaging dimension: height: 365 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
200
