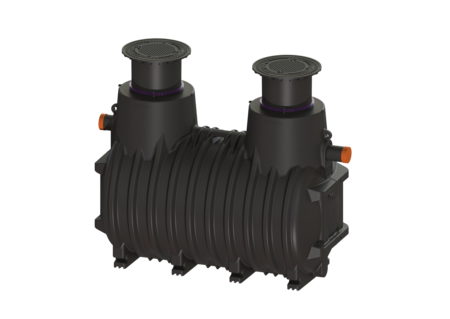

EasyOil oil/fuel separator

NS 10, Class II, 5800 l, D, In/outlet PE

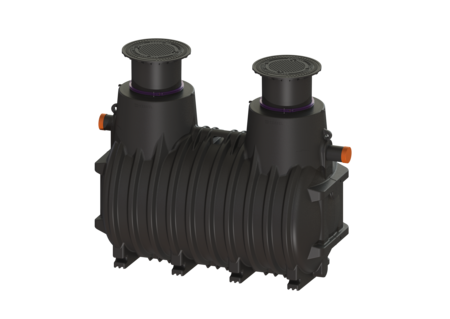

99610.80DEX
PDF product data sheet

KESSEL EasyOil oil/fuel separator, nominal size 10, load class D 400, sludge trap capacity 5000 l, type of disposal manual with suction hose, total volume 5800 l

    • Permanent leak tightness up to ground level
    • Resistant to and suitable for up to 100 % share of biodiesel (FAME)
    • Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
    Item no. 99610.80DEX
    Price group 60

      EasyOil oil/fuel separator NS 10, Class II, 5800 l, D, In/outlet PE
      The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Nominal size (NS): 10 Type of disposal: manual with suction hose Coalescence insert: no Load-bearing capacity (DIN 19901): E4 General characteristics Separator class: II Dimensions Net weight: 850 kg Gross weight: 850 kg Groundwater resistant from lower edge of base section: 1810 mm Excess depth: 120 mm DSC: 700 - 1.500 T-DSC: 180 Max. length: 3460 mm Installation depth: 870 - 1250 mm Required access area, length: 3110 mm Required access area, width: 1760 mm Packaging dimension: length: 3060 mm Packaging dimension: width: 1760 mm Packaging dimension: height: 2300 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1600 mm Distance pipe bottom inlet to tank bottom: 1630 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Total volume: 5800 l Contents of sludge trap: 5000 l Storage quantity of light liquid: 470 l Control Control unit: no
        Title Item no.
        Title Item no.
        Title Item no.
      28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
      9151020B Sampling chamber LW 1000, DN 200, Class B 9151020B Show
      915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
      915883A Sampling chamber DN 200, Load class A 915883A Show
      915883B Sampling chamber DN 200, Class B 915883B Show
      917413 Access panel for mounting on-wall 917413 Show
      917414 Access panel for in-wall installation 917414 Show
      917460 Extension section d: 600 mm, Extension 500 mm 917460 Show
      917808 Oil suction disposal connection DN 200 917808 Show
      917809 Sludge extraction system DN 200 917809 Show
      917826 Layer thickness measuring device SonicControl, type OA 917826 Show
      917828 Layer thickness measuring device SonicControl, type O 917828 Show
      917830 Measuring device SonicControl, Type A 917830 Show
      917861 Cable extension 10 m, for SonicControl LFA 917861 Show
      917862 Cable extension 20 m, for SonicControl LFA 917862 Show
      917863 Cable extension 30 m, for SonicControl LFA 917863 Show
        Title Item no.
      • Nominal size (NS) (nenngroesse): 10
      • Load class (belastungsklasse): D 400 (EN 124)
      • Installation depth (einbautiefe): 870  mm
      • Total volume (gesamtvolumen): 5,800  l
