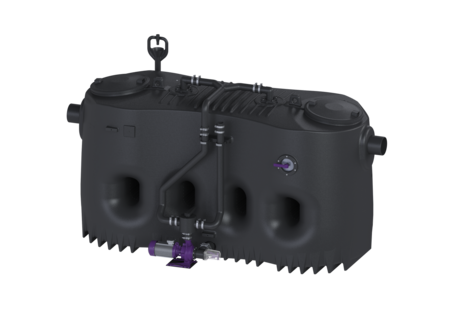

Grease separator EasyClean free
NS 20, Mix & Pump, left
KESSEL Grease separator EasyClean free, disposal Mix & Pump, Set-up area, width 1680 mm, nominal size 20, flow direction left, control unit yes, free-standing installation, type of disposal manual disposal and cleaning system, no
- Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
- Clean and odour-free disposal and cleaning
- Simple control
| Item no. | 93020-01-MS-L |
|---|---|
| GTIN | 4026092105092 |
| Price group | 60 |

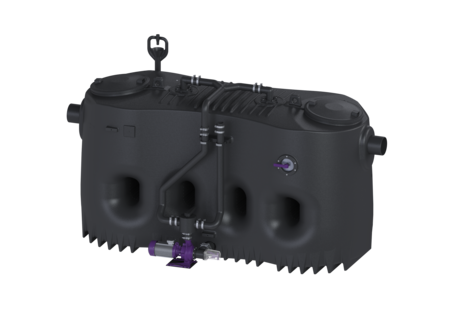

Grease separator EasyClean free NS 20, Mix & Pump, left
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and change lever which can be disconnected from the tank by a shut-off valve. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. Manual control is carried out by a user-friendly control unit that can be integrated into the building management system through a potential-free contact. 20 year polyethylene warranty. Variant Shut-off valve: yes Direction of flow: left Disposal variant: Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 20 SonicControl: no Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: manual disposal and cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 415 kg Gross weight: 490 kg Set-up area, length: 3530 mm Set-up area, width: 1680 mm Set-up area, height: 1950 mm Packaging dimension: length: 3530 mm Packaging dimension: width: 1680 mm Packaging dimension: height: 2085 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 1730 l Total volume: 3730 l Contents of sludge trap: 2000 l Storage quantity of grease: 800 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: no Self-diagnosis system (SDS): yes Rated current: 6,2 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Sampling system DN 200, horizontal | 915883 | Show |
 | Layer thickness measuring device SonicControl, for grease separators | 917821 | Show |
 | Cable extension 10 m, for SonicControl grease separator | 917871 | Show |
| Cable extension 20 m, for SonicControl grease separator | 917872 | Show |
| Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Seal DN 150 | 680003 | Show |
 | Hose clamp d: 110 mm | 680126 | Show |
 | Seal DN 200 | 680128 | Show |
 | Valve 2-way redistributor, with lever | 680274 | Show |
 | Valve 2-way redistributor | 680275 | Show |
 | Shut-off valve DN 100, polymer, horizontal | 680329 | Show |
 | Control unit Mix & Pump, 6.5, 7.5 and 10 A | 680341 | Show |
 | Flexible coupling DN 100, L: 100 mm | 680434 | Show |
 | Flexible coupling with hose clamps, DN 75, L: 100 mm | 680555 | Show |
 | Geared motor for SPF 300 KE, IP 55 | 680916 | Show |
 | Pump casing for SPF 300 KE | 680917 | Show |
 | Control unit Connect 400 V, grease separator | 681095 | Show |
 | Inspection window for EasyClean grease separator | 913109 | Show |
 | Cover d: 625 mm | 916901 | Show |
 | Clamp fastener for cover 625 mm | 917001 | Show |
 | Seal for cover 625 mm | 917201 | Show |
 | Radial impeller with cutting plate and whirler, 3.0 kW | 917854 | Show |
 | Cutting plate for pump 3,0 kW | 917855 | Show |
 | Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW | 917856 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
yes
- Material (material):
PE
- Cover material (abdeckung_material):
Polymer
- Disposal system (entsorgungseinrichtung):
Disposal pump
- Installation situation (einbausituation):
free-standing installation
- CE marking (ce_kennzeichnung):
yes
- Shredder-Mix-System (schredder_mix_system):
yes
- Nominal size (NS) (nenngroesse): 20
- Sludge bucket (schauglas): yes
- Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
- Set-up area, width (aufstellflaeche_breite): 1,680 mm
- Set-up area, length (aufstellflaeche_laenge): 3,530 mm
