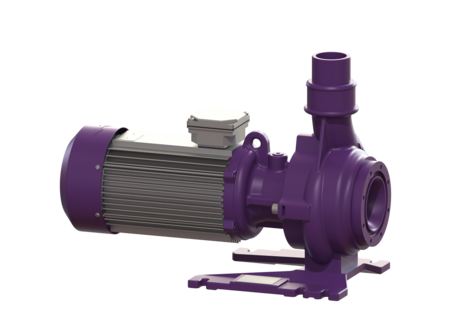

Replacement pump SPF 300 KE 2.0
Homogeniser, 3,0 kW
Homogeniser pump for grease separators
| Item no. | 917856 |
|---|---|
| GTIN | 4026092055823 |
| Price group | 90 |
Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW
Homogeniser pump for grease separators General characteristics ATEX: no Dimensions Net weight: 55,5 kg Gross weight: 57 kg Packaging dimension: length: 532 mm Packaging dimension: width: 130 mm Packaging dimension: height: 355 mm Pumping device Pump: SPF 300 KE 2.0 Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 6,2 A Protection class: I Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
