Grease separator EasyClean free

NS 4, Mix & Pump

93004.01/MS
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Mix & Pump, Set-up area, width 842 mm, nominal size 4, control unit yes, free-standing installation, type of disposal manual disposal and cleaning system, no

  • Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
  • Clean and odour-free disposal and cleaning
  • Simple control
Item no. 93004.01/MS
GTIN 4026092060933
Price group 60

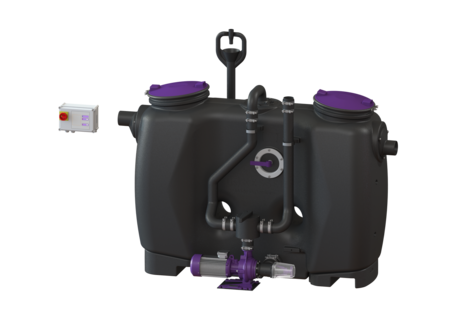

Grease separator EasyClean free NS 4, Mix & Pump
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and change lever which can be disconnected from the tank by a shut-off valve. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. Manual control is carried out by a user-friendly control unit that can be integrated into the building management system through a potential-free contact. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 4 SonicControl: no Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: manual disposal and cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 165 kg Gross weight: 190 kg Set-up area, length: 2116 mm Set-up area, width: 842 mm Set-up area, height: 1767 mm Required access area, length: 1880 mm Required access area, width: 680 mm Required access area, height: 1458 mm Packaging dimension: length: 1900 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 1520 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 400 l Total volume: 800 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: no Self-diagnosis system (SDS): yes Rated current: 6,2 A
  Title Item no.
  Title Item no.
  Title Item no.
915870 Sampling system DN 100/150, Vertical outlet 915870 Show
915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
917413 Access panel for mounting on-wall 917413 Show
917414 Access panel for in-wall installation 917414 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
680003 Seal DN 150 680003 Show
680126 Hose clamp d: 110 mm 680126 Show
680128 Seal DN 200 680128 Show
680164 Screw 10x3, A2 680164 Show
680274 Valve 2-way redistributor, with lever 680274 Show
680329 Shut-off valve DN 100, polymer, horizontal 680329 Show
680341 Control unit Mix & Pump, 6.5, 7.5 and 10 A 680341 Show
680434 Flexible coupling DN 100, L: 100 mm 680434 Show
680435 Inlet socket for grease separator NS 2-4 680435 Show
680437 Outlet socket for grease separator NS 2-4 680437 Show
680439 Inlet/outlet structure for grease separator NS 2-10 680439 Show
680555 Flexible coupling with hose clamps, DN 75, L: 100 mm 680555 Show
680590 Adapter for pump, Euro grease separator 680590 Show
913109 Inspection window for EasyClean grease separator 913109 Show
916904 Cover d: 420 mm, from 04/2004 916904 Show
917004 Clamp fastener for cover 420 mm, up to 04/2004 917004 Show
917204 Seal for cover d: 420 mm 917204 Show
917854 Radial impeller with cutting plate and whirler, 3.0 kW 917854 Show
917855 Cutting plate for pump 3,0 kW 917855 Show
917856 Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW 917856 Show
  • Material (material): PE
  • CE marking (ce_kennzeichnung): yes
  • Control unit (schaltgeraet): yes
  • Cover material (abdeckung_material): Polymer
  • Disposal system (entsorgungseinrichtung): Disposal pump
  • Installation situation (einbausituation): free-standing installation
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 4
  • Sludge bucket (schauglas): yes
  • Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
  • Set-up area, width (aufstellflaeche_breite): 842  mm
  • Set-up area, length (aufstellflaeche_laenge): 2,116  mm
