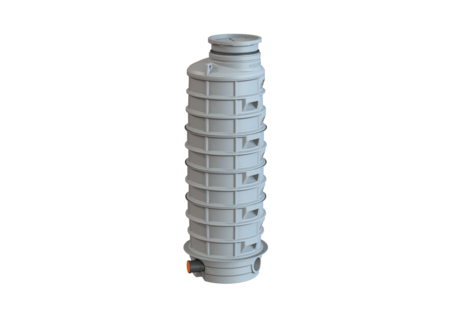

Backwater chamber LW 1000

Inlet DN 150, Outlet DN 150, 3180 mm

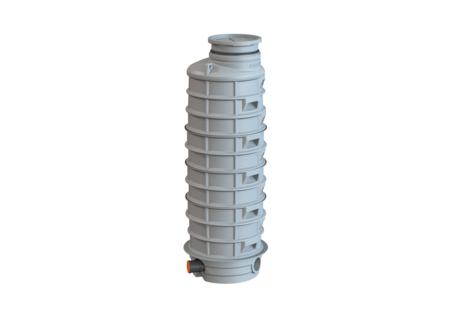

883005-DN150
883005-DN150
PDF product data sheet

KESSEL Backwater chamber LW 1000, inlet DN 150 mm, outlet DN 150 mm, height 3180 mm, wastewater with sewage, installation depth 3230 - 3460 mm, 1250 mm, type of cover Temporary protective cover

  • Komfort: expensive living or useful space is not lost
  • No system noises or unpleasant odours and soiling in the building
  • Simple installation thanks to low weight of the chamber components
Item no. 883005-DN150
GTIN 4026092071311
Price group 60

    Backwater chamber LW 1000 Inlet DN 150, Outlet DN 150, 3180 mm
    The backwater chamber with monolithic structure is equipped with access steps, three inlets, an open channel passage and an integrated Controlfix clean out. Thanks to the modular KESSEL system, the clean out can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. The temporary protective cover made of polymer can be used as a cover in the green area or be replaced by an optional upper section with cover plate in accordance with EN 124. The optional upper section makes a variable installation depth possible. Watertight – suitable for aggressive wastewater – 20-year warranty for the system tank. Variant Chamber system: Standard chamber system General characteristics Colour: grey Type of wastewater: with sewage Delivery state: Installation-ready (connection parts must be connected on site) Approval: Z-42.1-333 Dimensions Net weight: 145 kg Gross weight: 175 kg Groundwater resistant from lower edge of base section: 2000 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 3230 - 3460 mm Packaging dimension: length: 3300 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1350 mm Tank/drain body Channel: open channel passage, with inlets right and left, 45 degrees Chamber height: 3180 mm Tank width max.: 1250 mm Distance pipe bottom outlet to tank bottom: 108 mm Distance pipe bottom inlet to tank bottom: 136 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 3 Connection inlet/outlet sockets: with spigot for connection for wastewater pipes and shaped parts in accordance with DIN EN 1401-1, DIN 19534, DIN EN 12666-1, DIN 19537-3 and DIN EN 1852-1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Temporary protective cover Cover material: Polymer
      Title Item no.
      Title Item no.
      Title Item no.
    80091 Staufix SWA conversion kit DN 100-200, fr. 01/2011 80091 Show
    80102 Pumpfix F conversion kit DN 100-200, fr. 01/2012, 15 m cable 80102 Show
    80104 Staufix FKA conversion kit DN 100-200, fr. 01/2012, 15 m cable 80104 Show
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Type of wastewater (abwasserart_de): with sewage
    • External monitoring (fremdueberwachung): SKZ
    • Installation depth (einbautiefe): 3,230  mm
    • Number of inlets (zulauf_anzahl): 3
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 150  mm
    • Number of outlets (anzahl_auslauf): 1
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 150  mm
