Pumping station Aquapump XL

Duo, STZ 3700-S1, ATEX

8743019
8743019
PDF product data sheet

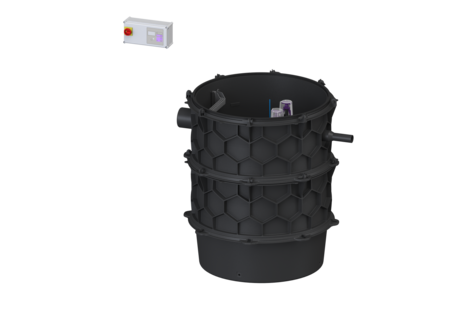

KESSEL Pumping station Aquapump XL, Duo, wastewater with sewage, underground installation, pump control by Control unit, with 2 submersible STZ 3700 pumps, operating mode S1, level measurement hydrostatic

  • Maximum safety
  • Flexible installation
  • Suitable for potentially explosive atmospheres
Item no. 8743019
GTIN 4026092075739
Price group 60

Pumping station Aquapump XL Duo, STZ 3700-S1, ATEX
The pumping station with ATEX approval for wastewater with and without sewage is equipped with one or two submersible pumps, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has an open pump tank (wet installation) with universal connection options. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chain available as accessory. Art. no. 680 528 = length 2 m 680 529 = length 3 m 680 530 = length 4 m 680 531 = length 5 m Variant Note on installation depth: in combination with a chamber module Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo ATEX: yes Dimensions Net weight: 250 kg Gross weight: 274 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1240 mm Width: 1240 mm Height: 1416 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1550 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Distance from centre of outlet pipe to tank bottom: 1134 mm Distance pipe bottom inlet to tank bottom: 1054 mm Distance from centre of inlet pipe to tank bottom: 1134 mm Distance from inlet pipe invert to top of tank: 330 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 300 l Pumping device Pump: STZ 3700 Number of pumps: 2 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,4 A Protection class: I Insulation class: H Cos phi - power factor: 0,82 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 28 m³/h Max. pumping height: 35 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
