Yard drain
System 400, DN 150, A, 730 - 1080 mm

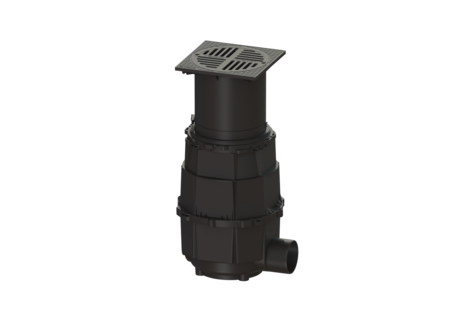

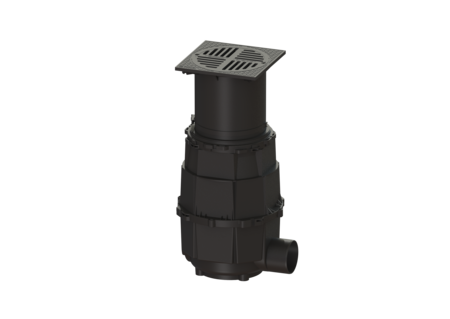

KESSEL Yard drain, nominal size (DN) 150, installation depth 730 - 1080 mm, load class A 15, odour trap included, Cover Polymer, cover width 400 mm, cover length 400 mm, drainage by Point drain, socket lateral, drain body Polymer
- Different load classes available
- Height-adjustable complete system
- Easy underground installation
| Item no. | 851152A |
|---|---|
| GTIN | 4026092004401 |
| Price group | 10 |
Yard drain System 400, DN 150, A, 730 - 1080 mm
The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Sealing water height: 100 mm Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 150 Outer diameter (OD): 160 mm Odour trap: included Dimensions Net weight: 45 kg Gross weight: 45 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Installation depth: 730 - 1080 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 585 mm Packaging dimension: width: 535 mm Packaging dimension: height: 1080 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: black Width of cover: 400 mm Length of cover: 400 mm Surface: EDM Load class: A 15 (EN 124) Rim width: 400 mm Rim length: 400 mm Shape of upper section: square Contents of sludge trap: yes
