Yard drain

System 400, DN 100, B, 580 - 710 mm

851101B
851101B
PDF product data sheet

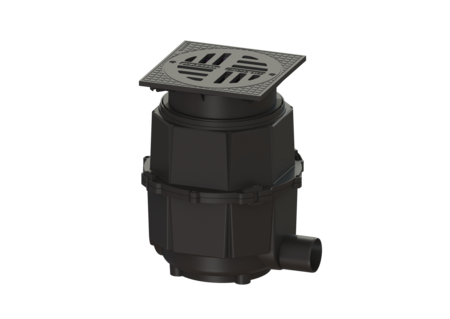

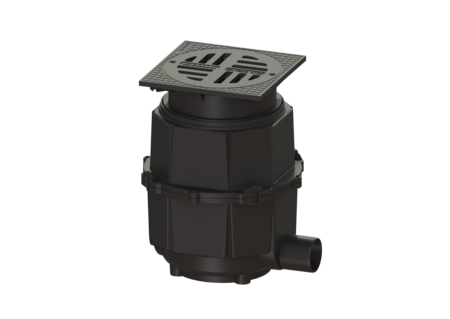

KESSEL Yard drain, nominal size (DN) 100, installation depth 580 - 710 mm, load class B 125, odour trap included, Cover Grey iron, cover width 400 mm, cover length 400 mm, drainage by Point drain, socket lateral, drain body Polymer

  • Different load classes available
  • Height-adjustable complete system
  • Easy underground installation
Item no. 851101B
GTIN 4026092004296
Price group 10

    Yard drain System 400, DN 100, B, 580 - 710 mm
    The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Waterproofing layer on the upper section: Connection flange Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Vertical adjustment: 55 - 180 mm Net weight: 23 kg Gross weight: 23 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Adjustment range: 55 - 185 Installation depth: 580 - 710 mm Type of height adjustability: vertically adjustable upper section Length: 563 mm Width: 500 mm Height: 580 mm Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 700 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Grey iron Width of cover: 400 mm Length of cover: 400 mm Load class: B 125 (EN 124) Rim width: 400 mm Rim length: 400 mm Shape of upper section: square Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    500100 Hole saw for DN 100/125/150 500100 Show
    500101 Hole saw for DN 50/70/100 500101 Show
    83021 Pressure sealing flange f. upper sect. LW400 in waterrpr. conc. 83021 Show
    83022 Membrane for System 400, Waterproof concrete 83022 Show
    850101 Extension section System 400, Polymer 850101 Show
    850102 Adapter d: 450 mm, with seal 850102 Show
    850103 Adapter d: 358 mm, with seal 850103 Show
    850114 Seal for pipe penetration, DN 50 850114 Show
    850116 Seal for pipe penetration, DN 70 850116 Show
    850117 Seal for pipe penetration, DN 100 850117 Show
    850118 Seal for pipe penetration, DN 125 850118 Show
    850119 Seal for pipe penetration, DN 150 850119 Show
    850131 Cover plate Grey iron, Class B 850131 Show
    850143 Lifting tool for System 400 odour trap 850143 Show
      Title Item no.
    680315 Seal for chamber system LW 400 680315 Show
    850009 Drain body, yard/gutter drain with outlet, DN 100, d: 450 mm 850009 Show
    850111 Connection wed Polymer, 4 each 850111 Show
    850113 Seal d: 458 mm 850113 Show
    850115 Sludge bucket System 400, Polymer 850115 Show
    850135 Slotted cover round, d: 362 mm, Grey iron 850135 Show
    850141 Odour trap for yard drains, DN 100 850141 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Cover material (abdeckung_material): Grey iron
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 580  mm
    • Odour trap (geruchsverschluss): included
    • (form_Aufsatzstueck):
    • Contents of sludge trap (schlammeimer): yes
