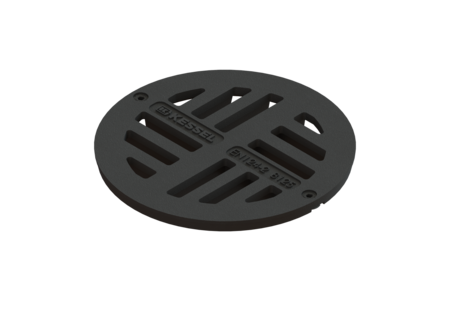

Slotted cover

round, d: 362 mm, Grey iron

850135
PDF product data sheet

Slotted cover suitable for yard and parking deck drains

    Item no. 850135
    GTIN 4026092003114
    Price group 60

      Slotted cover round, d: 362 mm, Grey iron
      Slotted cover suitable for yard and parking deck drains General characteristics Material: Grey iron ATEX: no Dimensions Net weight: 13 kg Gross weight: 13 kg Diameter: 362 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 47 mm Coverage features Type of cover: Round slotted cover Cover material: Grey iron Locking: lockable Load class: B 125 (EN 124) Grating colour: black Cover Grating colour: black
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      CAD Data
      • Cover material (abdeckung_material): Grey iron
      • Load class (belastungsklasse): B 125 (EN 124)
