Yard drain

System 200, vert., slot grat., A 15

67060.30
PDF product data sheet

KESSEL Yard drain, nominal size (DN) 100, drainage by Point drain, load class A 15, socket vertical, drain body Polymer, upper section material Polymer

Item no. 67060.30
GTIN 4026092003800
Price group 10

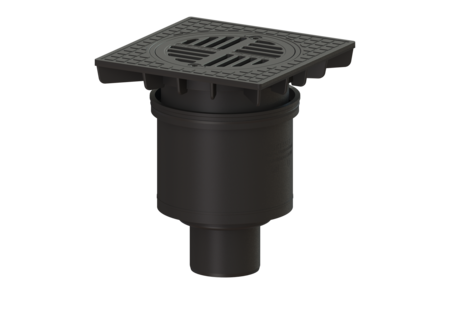

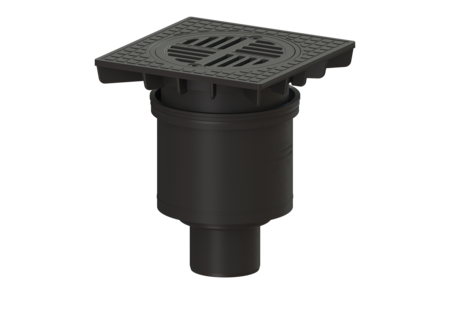

    Yard drain System 200, vert., slot grat., A 15
    The polymer yard drain is used for point drainage and is equipped with a lip seal as well as a temporary protective cover. Variant System: 200 Discharge rate (l/s) with 20 mm backwater: 4,5 General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Odour trap: no Dimensions Vertical adjustment: 40 - 150 mm Net weight: 3,32 kg Gross weight: 3,32 kg Packaging dimension: length: 330 mm Packaging dimension: width: 330 mm Packaging dimension: height: 375 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: black Width of cover: 300 mm Length of cover: 300 mm Surface: EDM Frame material: Polymer Locking: placed Load class: A 15 (EN 124) Rim width: 300 mm Rim length: 300 mm Shape of upper section: square Upper section material: Polymer
      Title Item no.
      Title Item no.
      Title Item no.
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    67500 Extension section System 200, Polymer 67500 Show
    67600 Extension section System 200, Side inlet DN 100 67600 Show
      Title Item no.
    27173 Slotted cover round, d: 218 mm, Polymer 27173 Show
    27180 Cover Support frame, class A 15, polymer 27180 Show
    67040 Drain body, yard/gutter drain DN 100, Vertical outlet 67040 Show
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): Polymer
    • Socket version (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Round slotted cover
    • Load class (belastungsklasse): A 15 (EN 124)
