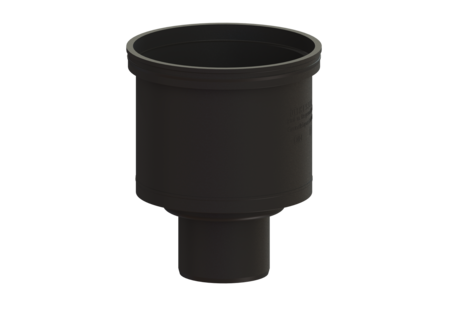

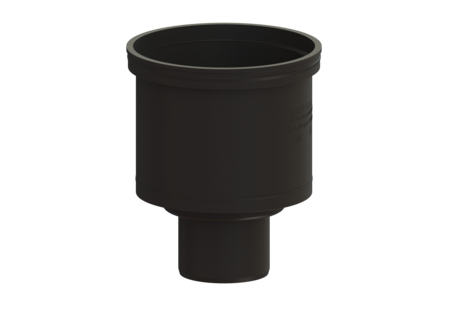

Drain body, yard/gutter drain

DN 100, Vertical outlet

67040
Back to table of variants PDF product data sheet

KESSEL Drain body, yard/gutter drain, nominal size (DN) 100, weight, socket vertical, drain body Polymer

  • For easy underground installation
Item no. 67040
GTIN 4026092001608
Price group 10

    Drain body, yard/gutter drain DN 100, Vertical outlet
    The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap. Variant System: 200 Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: no Dimensions Net weight: 1 kg Gross weight: 1 kg Length: 235 mm Width: 235 mm Height: 280 mm Packaging dimension: length: 23,5 mm Packaging dimension: width: 23,5 mm Packaging dimension: height: 28,5 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical
      Title Item no.
    57410 Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm 57410 Show
    57415 Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm 57415 Show
    67700 Upper section, gutter drain Protective pipe DN 100, slotted cover 67700 Show
    67750 Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    67775 Cover plate Polymer, d: 218 mm 67775 Show
    67985 Upper section Class B, Round slotted grating, d:230 mm 67985 Show
    67986 Upper section with slotted cover d: 218 mm, A/L15 67986 Show
      Title Item no.
      Title Item no.
    67007 Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Show
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    67500 Extension section System 200, Polymer 67500 Show
    67600 Extension section System 200, Side inlet DN 100 67600 Show
    67800 Wall mounting Polymer, for gutter drains 67800 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss): no
    • Length (laenge): 235  mm
    • Width (breite): 235  mm
