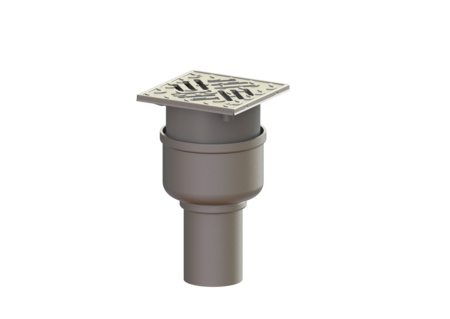

Ferrofix floor/roof drain
DN 70, vertical, Slotted grating
KESSEL Ferrofix floor/roof drain, System 125, nominal size (DN) 70, type of cover Slotted cover, cover length 138 mm, socket vertical, vertically adjustable, outside diameter (OD) 78 mm, volume 33,12 dm³
- Made of particularly hygienic and mechanically highly resistant stainless steel
- High flow rate

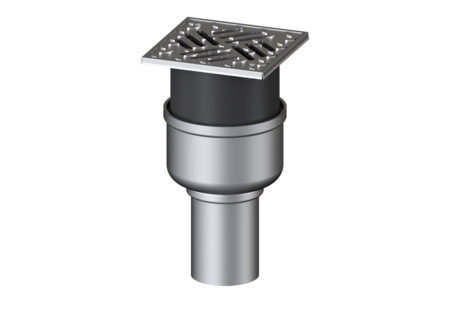

| Item no. | 54410.61 |
|---|---|
| GTIN | 4026092053478 |
| Price group | 70 |
Ferrofix floor/roof drain DN 70, vertical, Slotted grating
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Approval: Z-19.53-2414,Z-19.17-1719 ATEX: no Odour trap: included Dimensions Net weight: 2,25 kg Gross weight: 2,77 kg Type of height adjustability: vertically adjustable upper section Length: 142 mm Width: 142 mm Packaging dimension: length: 386 mm Packaging dimension: width: 286 mm Packaging dimension: height: 300 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Locking: screwed Load class: L 15 (EN 1253-1) Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim width: 150 mm Rim length: 150 mm Upper section: vertically adjustable Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
 | Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Show |
 | Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Show |
 | Extension section System 125, with pressure sealing flange | 54187 | Show |
 | Extension section System 125, side inlet DN 50/40 | 54189 | Show |
 | Extension section System 125, 304 stainless steel | 54900 | Show |
 | Extension section System 125, with glued flange | 54901 | Show |
 | Extension section System 125, Side inlet DN 50 | 54902 | Show |
 | Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
vertical
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
