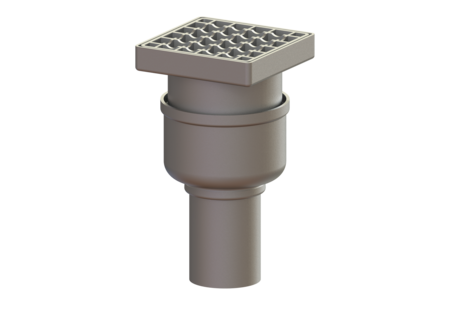

Ferrofix floor/roof drain

DN 70, vertical, Slotted grating, SST

54410.20
54410.20
PDF product data sheet

KESSEL Ferrofix floor/roof drain, System 125, nominal size (DN) 70, type of cover Slotted cover, cover length 138 mm, socket vertical, vertically adjustable, outside diameter (OD) 78 mm, volume 33,12 dm³

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • High flow rate
Item no. 54410.20
GTIN 4026092056462
Price group 70

    Ferrofix floor/roof drain DN 70, vertical, Slotted grating, SST
    The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Approval: Z-19.53-2414,Z-19.17-1719 ATEX: no Odour trap: included Dimensions Net weight: 3,34 kg Gross weight: 3,86 kg Type of height adjustability: vertically adjustable upper section Length: 142 mm Width: 142 mm Packaging dimension: length: 386 mm Packaging dimension: width: 286 mm Packaging dimension: height: 300 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Surface: pickled Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
    48099 Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
    54187 Extension section System 125, with pressure sealing flange 54187 Show
    54189 Extension section System 125, side inlet DN 50/40 54189 Show
    54900 Extension section System 125, 304 stainless steel 54900 Show
    54901 Extension section System 125, with glued flange 54901 Show
    54902 Extension section System 125, Side inlet DN 50 54902 Show
    54903 Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    54410 Ferrofix drain body Sys 125, DN 70, Vertical outlet 54410 Show
    54914 Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm 54914 Show
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
