Practicus floor/roof drain

DN50, horiz, Waterpr layer, Des grate

45150.53
45150.53
PDF product data sheet

KESSEL Practicus floor/roof drain, cover length 120 mm, type of waterproofing Waterproofing layer, socket lateral, nominal size (DN) 50, odour trap included, drainage by Point drain, type of cover Design cover, design cover Kessel

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
Item no. 45150.53
GTIN 4026092052686
Price group 10

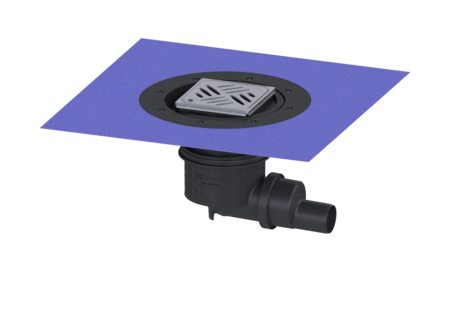

    Practicus floor/roof drain DN50, horiz, Waterpr layer, Des grate
    The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 1,5 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 10 - 23 mm Net weight: 2,7 kg Gross weight: 3,46 kg Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    45150 Practicus drain body DN 50, Horizontal outlet 45150 Show
    48651 Waterproofing membrane for joint sealing, liquid 48651 Show
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
    680225 Design cover Oval, Lock & Lift 680225 Show
    680226 Design cover KESSEL, Lock & Lift 680226 Show
    680235 Design cover Cross, Lock & Lift 680235 Show
    680236 Design cover Parade, Lock & Lift 680236 Show
    680237 Design cover Festival, Lock & Lift 680237 Show
    680238 Design cover Spot, Lock & Lift 680238 Show
    680239 Design cover Slot, Lock & Lift 680239 Show
    680240 Design cover Sticks, Lock & Lift 680240 Show
    680702 Release key for Lock & Lift 680702 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
