Practicus drain body

DN 50, Horizontal outlet

45150
45150
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket lateral, nominal size (DN) 50, odour trap included, waterproofing layer upper section by Connection flange

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
Item no. 45150
GTIN 4026092033548
Price group 10

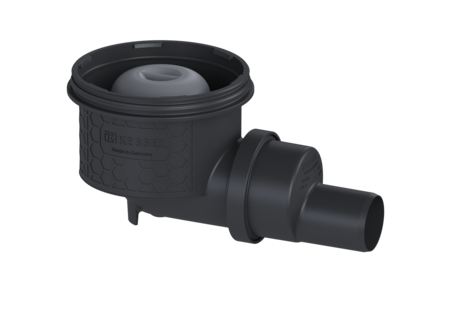

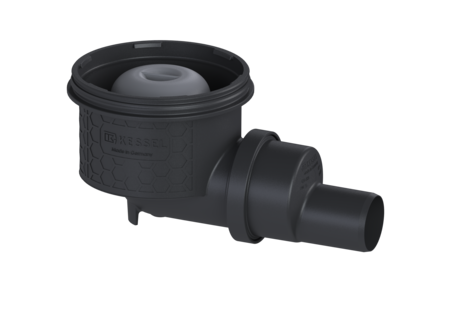

    Practicus drain body DN 50, Horizontal outlet
    In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 0,68 kg Gross weight: 0,79 kg Diameter: 135 mm Height: 132 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: lateral
      Title Item no.
    48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Show
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
    48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Show
    48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Show
    48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Show
    48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Show
    48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Show
    48211 Upper section tileable, 304 SST, K 3 48211 Show
    48218 Upper section Slot design cover, 304 SST, K 3 48218 Show
    48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Show
    48220 Upper section Spot design cover, 304 SST, K 3 48220 Show
    48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Show
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Show
    48226 Upper section Oval design cover, 304 SST, L 15 48226 Show
    48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Show
    48228 Upper section Oval design cover, 316 SST, L 15 48228 Show
    48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Show
    48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Show
    48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Show
    48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Show
    48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Show
    48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Show
    48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Show
    48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Show
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
    48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Show
    48906 Variofix upper section tileable, 304 st., K 3 48906 Show
    48928M Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 48928M Show
    48929M Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 48929M Show
    48930M Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 48930M Show
    48931M Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 48931M Show
    48932M Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 48932M Show
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
    48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
