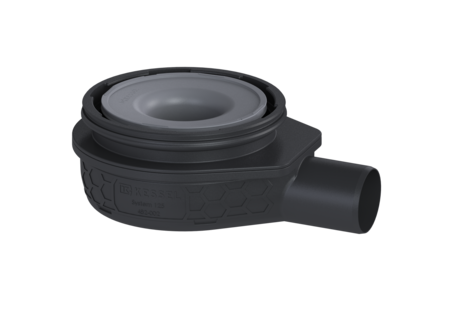

The Ultraflat 79 drain body

DN 50, Odour trap 50 mm

44700
44700
PDF product data sheet

KESSEL The Ultraflat 79 drain body, length 227 mm, locking, design cover, Sealing water height 50 mm, waterproofing layer drain body by

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44700
GTIN 4026092080733
Price group 10

The Ultraflat 79 drain body DN 50, Odour trap 50 mm
The drain body for floor drains. The Ultraflat 79 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Variant System: 125 Seepage opening: optional Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Net weight: 0,36 kg Gross weight: 0,4 kg Length: 227 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 226,9 mm Packaging dimension: width: 163 mm Packaging dimension: height: 84,2 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS
  Title Item no.
48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Show
48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Show
48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Show
48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Show
48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Show
48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Show
48211 Upper section tileable, 304 SST, K 3 48211 Show
48218 Upper section Slot design cover, 304 SST, K 3 48218 Show
48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Show
48220 Upper section Spot design cover, 304 SST, K 3 48220 Show
48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Show
48225 Upper section Kessel design cover, 304 SST, L 15 48225 Show
48226 Upper section Oval design cover, 304 SST, L 15 48226 Show
48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Show
48228 Upper section Oval design cover, 316 SST, L 15 48228 Show
48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Show
48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Show
48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Show
48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Show
48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Show
48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Show
48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Show
48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Show
48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Show
48906 Variofix upper section tileable, 304 st., K 3 48906 Show
48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
  Title Item no.
  Title Item no.
27118 Adapter DN 50/40 27118 Show
44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Show
44703 Clip flange The Ultraflat 79, Ecoguss, Practicus 44703 Show
44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
48403 Extension section H: 140 mm, with glued flange 48403 Show
48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
48500 Odour trap Multistop, System 125 48500 Show
48550 Odour trap Megastop 48550 Show
48900 Extension section H: 120 mm, with glued flange 48900 Show
48987 Extension section H: 136 mm, without inlet 48987 Show
48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
  Title Item no.
680696 Odour trap for The Ultraflat 79 680696 Show
  • Nominal size (DN) (nennweite): 50
  • Material of drain body (material_grundkoerper): ABS
  • TÜV test mark (pruefzeichen): ID 1111244461
