Lifting stati. Aqualift F XL 300l
Duo, SPF 3000-S1, Backflow preventer

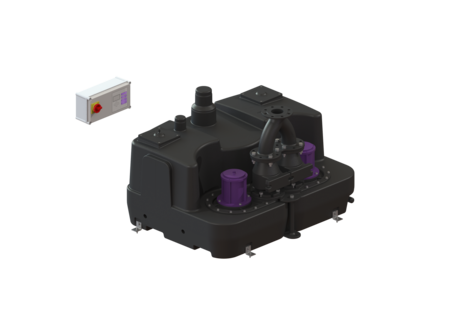

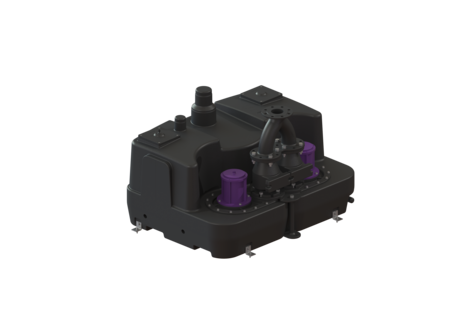

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 400 V, operating mode S1, with 2 submersible SPF 3000 pumps, Backflow preventer integrated, pressure pipe connection vertical
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 11112 |
|---|---|
| GTIN | 4026092057797 |
| Price group | 50 |
Lifting stati. Aqualift F XL 300l Duo, SPF 3000-S1, Backflow preventer
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 186,57 kg Gross weight: 206,57 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 300 l Pumping device Pump: SPF 3000 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S1 Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Retrofit kit Alarm float switch, for lifting station | 28014 | Show |
 | Backflow preventer DN 80, grey cast iron | 28021 | Show |
 | Y-pipe DN 80 | 28042 | Show |
 | Seal DN 80, for flange | 28043 | Show |
 | Immersion pipe, 5 m hose | 28050 | Show |
 | Replacement set pump flange | 28051 | Show |
 | Pump motor SPF 3000 / 400 V S1 | 28064 | Show |
 | Replacement flap backwater valve DN80 | 28074 | Show |
 | Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A | 28758 | Show |
 | Seal Rolling ring, DN 100 | 680001 | Show |
 | Seal DN 150 | 680003 | Show |
 | Battery 9 V block | 680034 | Show |
 | Seal Pump flange | 680045 | Show |
 | Attachment bracket with screws (2 ea.) | 680046 | Show |
| Screw set galvanised, 14 each | 680047 | Show | |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Show |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Show |
 | Cleaning cover screwed, DN 160 | 680421 | Show |
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- Pump (pumpe): SPF 3000
- Impeller type (laufrad_typ): Multi-vane impeller
- (absperreinrichtung):
