Aqualift F XL, 450 L lift. stat.
Duo, SPF 3000-S3, 2 shut-off valves
![](https://assets.kessel.de/pb/640/pb_wgpumpe_11058_2295.png)

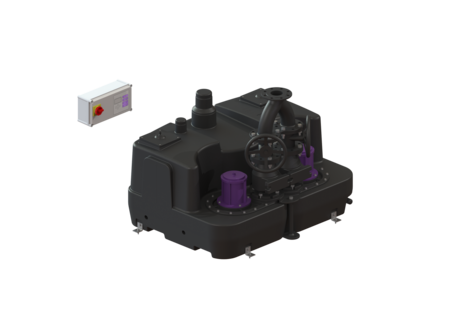

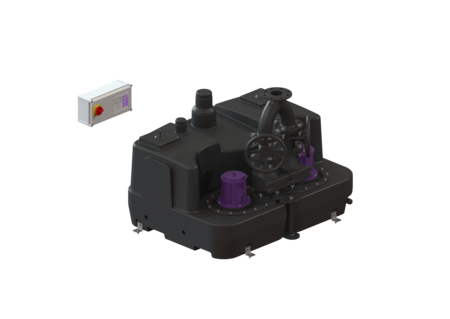

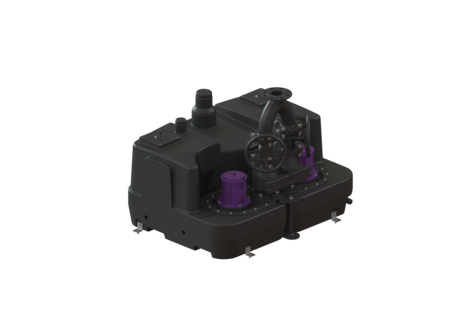

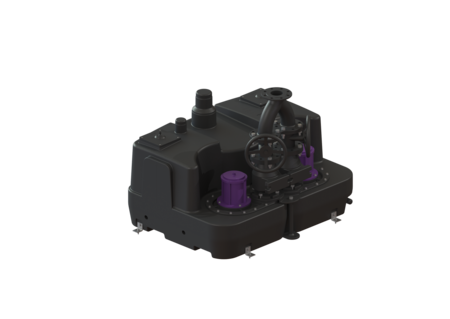

KESSEL Aqualift F XL, 450 L lift. stat. Duo, wastewater with sewage, duo pump, 400 V, shut-off valve 2 shut-off valves made of cast iron, with 2 submersible SPF 3000 pumps, operating mode S3 - 50 %
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
Item no. | 11058 |
---|---|
GTIN | 4026092057254 |
Price group | 50 |
Aqualift F XL, 450 L lift. stat. Duo, SPF 3000-S3, 2 shut-off valves
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: 2 shut-off valves made of cast iron Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 216,6 kg Gross weight: 236,6 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 450 l Pumping device Pump: SPF 3000 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Retrofit kit Alarm float switch, for lifting station | 28014 | Show |
![]() | Backflow preventer DN 80, grey cast iron | 28021 | Show |
![]() | Pump drive SPF 3000 400 V, S3, 5 m cable | 28027 | Show |
![]() | Shut-off valve DN 80, grey cast iron, with handwheel | 28041 | Show |
![]() | Y-pipe DN 80 | 28042 | Show |
![]() | Seal DN 80, for flange | 28043 | Show |
![]() | Immersion pipe 5 m Schlauch, incl. screws | 28050 | Show |
![]() | Replacement set pump flange | 28051 | Show |
![]() | Replacement flap backwater valve DN80 | 28074 | Show |
![]() | Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A | 28758 | Show |
![]() | Seal Rolling ring, DN 100 | 680001 | Show |
![]() | Seal DN 150 | 680003 | Show |
![]() | Battery 9 V block | 680034 | Show |
![]() | Seal Pump flange | 680045 | Show |
![]() | Attachment bracket with screws (2 ea.) | 680046 | Show |
Screw set galvanised, 14 each | 680047 | Show | |
![]() | Pump flange SPF 1400 - SPF 4500 | 680050 | Show |
![]() | Seal for SPF 1400 - SPF 4500 | 680052 | Show |
![]() | Cleaning cover screwed, DN 160 | 680421 | Show |
Manuals | |
---|---|
Declaration of Performance | |
Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- Pump (pumpe): SPF 3000
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): 2 shut-off valves made of cast iron
