Different covers for channel and inlets
KESSEL offers a wide range of grate solutions for swimming pool areas, which vary above all in appearance and material.

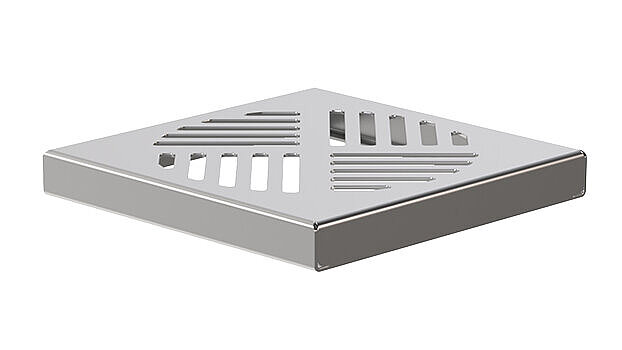

KESSEL design stainless steel bathroom grate
Suitable for barefoot areas, brushed surface, anti-slip R 12 (DIN 51130), assessment group C (DIN 51097), KESSEL design, insertion depth 25 mm, thickness 2 mm, class K 3
Stainless steel bathroom grate
Suitable for barefoot areas, brushed surface, anti-slip R 12 (DIN 51130), assessment group C (DIN 51097), holes 8× 8 mm, insertion depth 25 mm, thickness 2 mm, class K 3

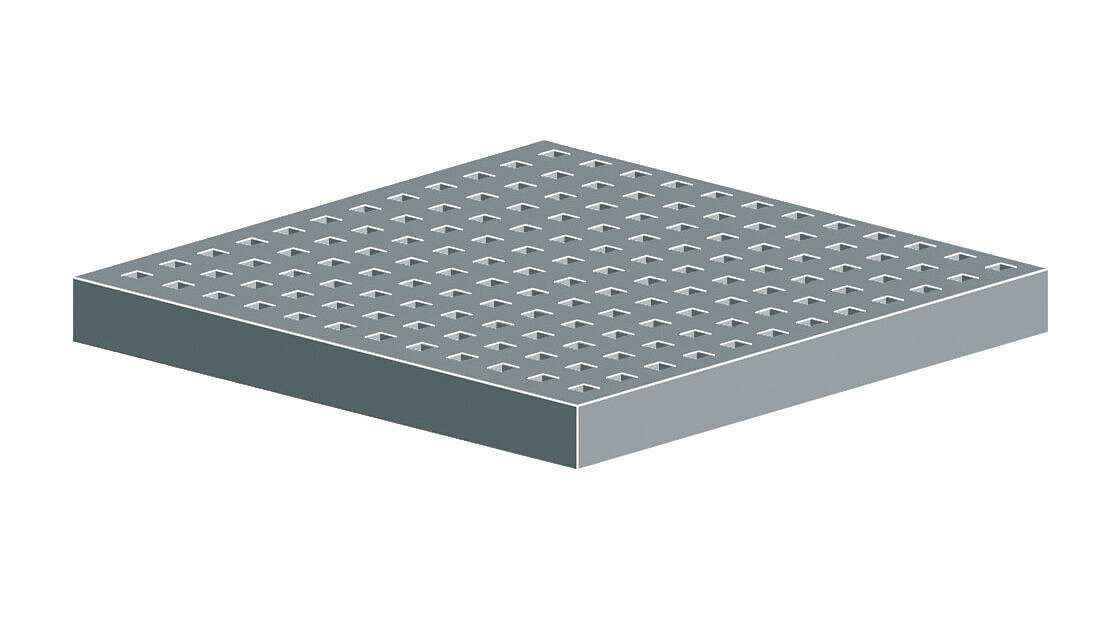

Stainless steel bathroom grate
Suitable for barefoot areas, brushed surface, anti-slip R 12 (DIN 51130), assessment group C (DIN 51097), hole Ø 8 mm, insertion depth 25 mm, thickness 2 mm, class K 3

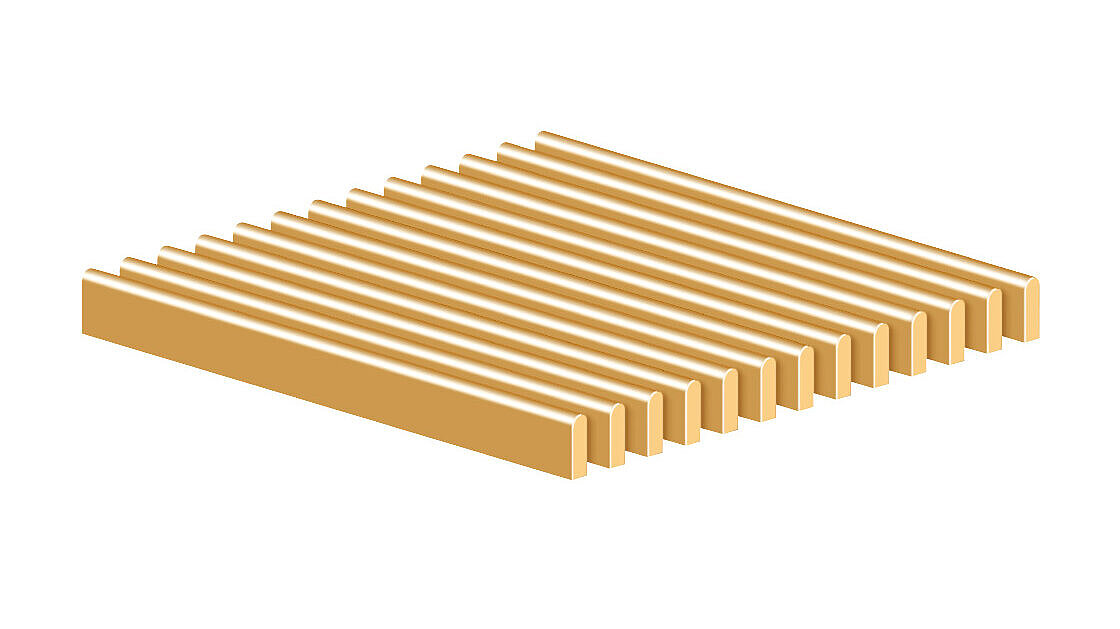

Polymer bathroom grate
Suitable for barefoot areas, with a rounded or flat profile top, colours white, grey, beige or yellow (other RAL colours as well as roll-up grille version on request), insertion depth 25 mm, class K 3
Customer logos on grates
On request, customer-specific designs and logos can also be implemented with grates.

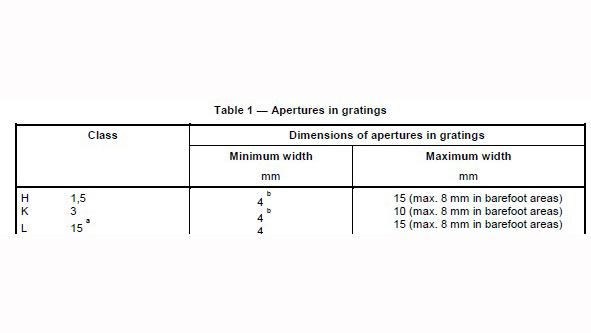

However, this must be done in accordance with the requirements of DIN EN 1253.
There are minimum and maximum widths for openings in the grates depending on the load class. In barefoot areas, this maximum width is limited to 8 mm in order to prevent the risk of injury
Quality "made in Germany"
The entire Ferrofix product range is developed and manufactured in Germany in our own competence centre in Ulm. With more than 40 years of experience as a system provider for stainless steel products in the drainage sector, the team of experts at KESSEL Inox therewith provides you with a reliable all-round service through to sophisticated individual solutions.
