Different covers for any channel / gully

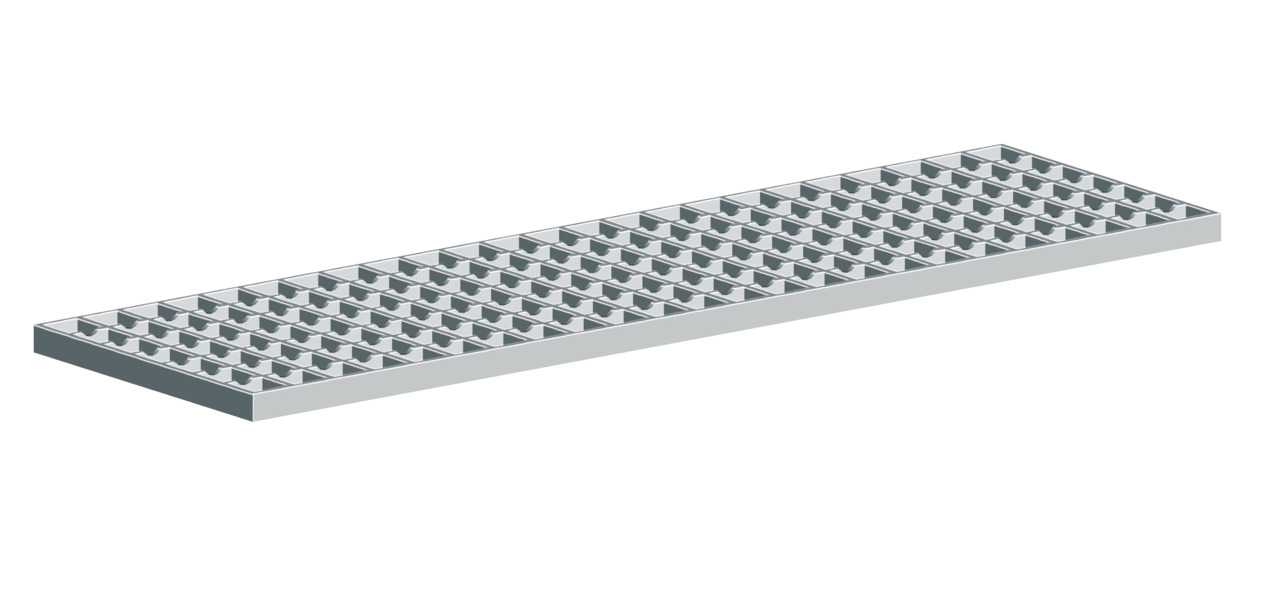

Stainless steel grated cover
Class L 15 or M 125,
anti-slip R 12,
pickled in a dip tank.
Mesh size:
23 × 23 mm or
30 × 30 mm
Bar grate
Class M 125,
anti-slip,
pickled in a dip tank.
Bar spacing 18 mm,
supporting bar 25× 8 mm.
Ribbed plate cover
Class M 125,
anti-slip R 11,
pickled in a dip tank,
inlet with 8 mm circumference,
material thickness 10 mm
Plate cover
Class M 125,
not anti-slip,
glass bead blasted.
Inlet with 8 mm circumference,
material thickness 10 mm

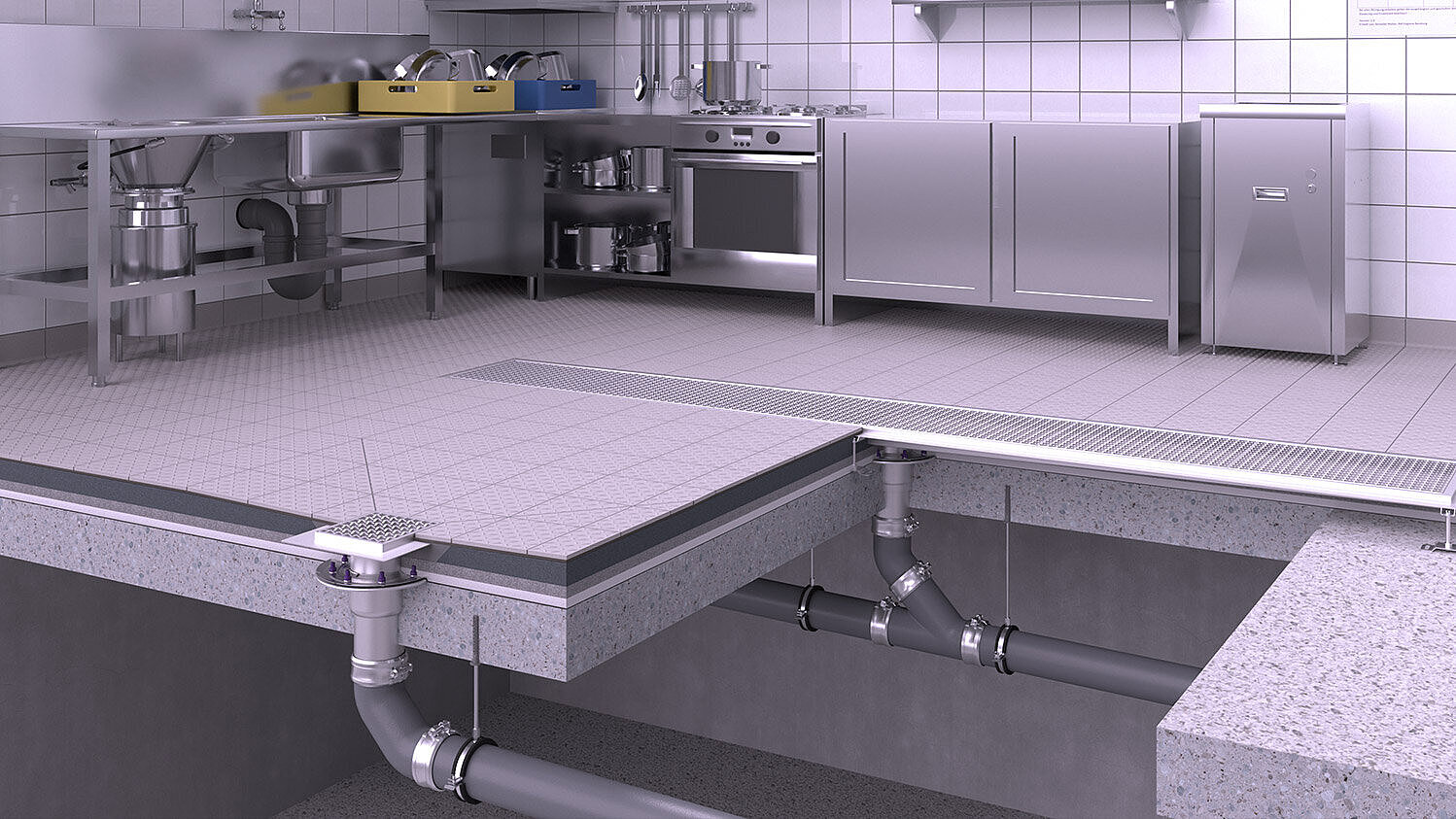

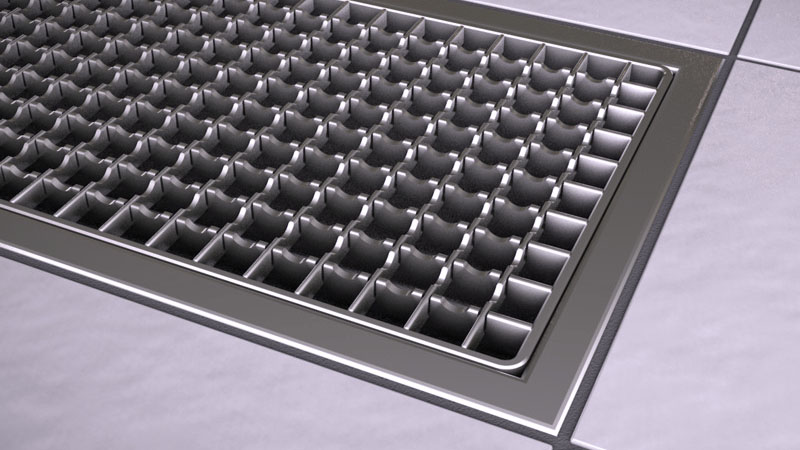

With regard to the stainless steel channels used in kitchen and swimming pool areas, there are barely any differences except for the dimensions. Box channels with a glued flange are mainly used here. Grated covers, bar grates and plate covers are mainly used in kitchens or commercial areas in order to ensure the joint sealing in accordance with the relevant sealing standard.
"Waterproofing for indoor applications".
As a rule, all rooms used in commercial facilities have to demonstrate their slip resistance in accordance with their application.
Quality "made in Germany"
The entire Ferrofix product range is developed and manufactured in Germany in our own competence centre in Ulm. With more than 40 years of experience as a system provider for stainless steel products in the drainage sector, the team of experts at KESSEL Inox therewith provides you with a reliable all-round service through to sophisticated individual solutions.
