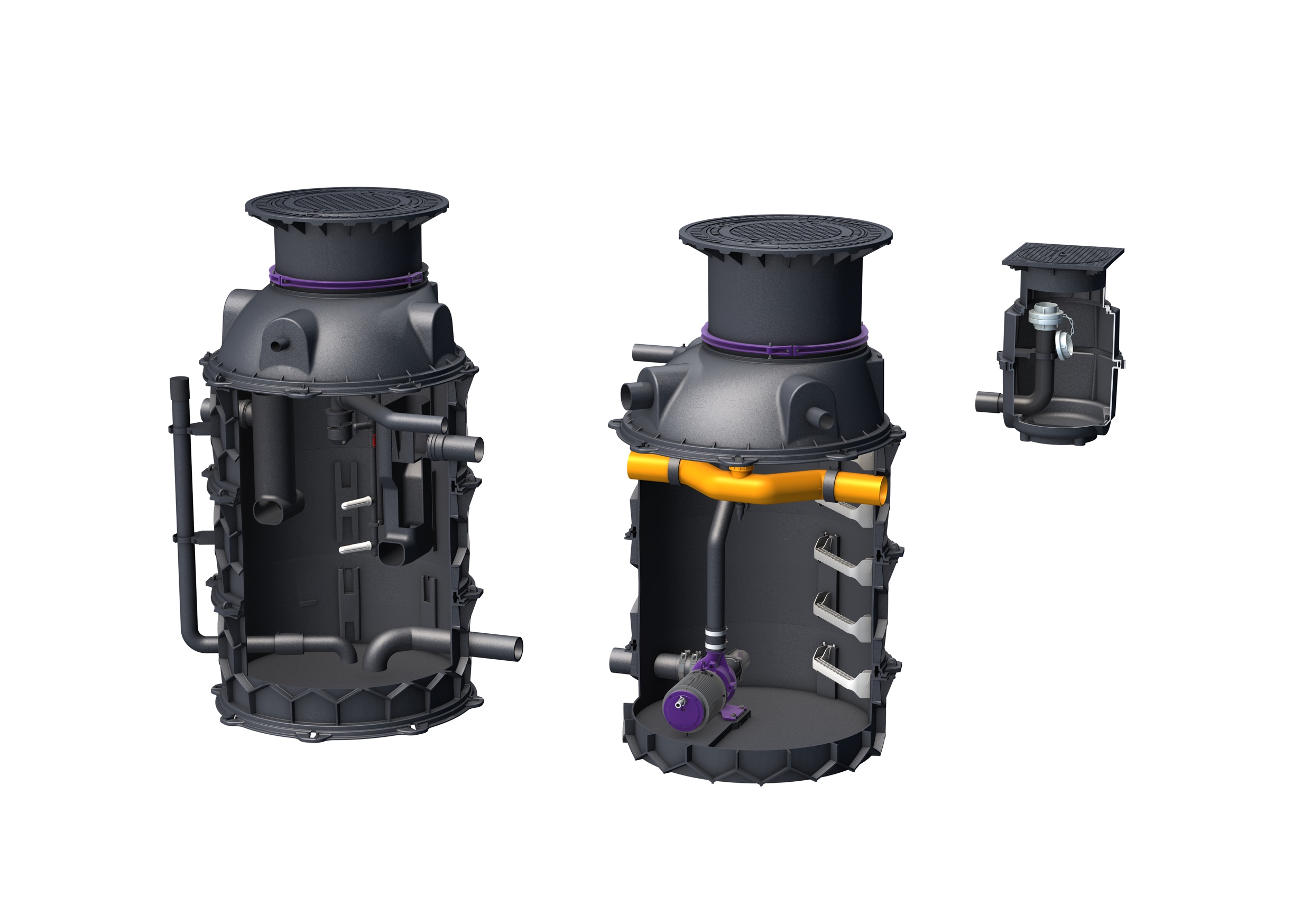

The mix makes the difference. The EasyClean ground Auto Mix grease separator is a grease separator with direct disposal, shredder-mix system for circulation and homogenisation of the tank contents and a control unit for central control of the shredder-mix system and refill inlet. The contents of the closed tank are extracted through permanently installed pipes, onto which the disposal vehicle’s pump is coupled on the outside of the building.
The EasyClean ground Auto Mix grease separator is available for load classes A/B and D as well as in nominal sizes NS 1 to NS 10, which are sufficient for most businesses such as restaurants and hotels. In addition, we also offer individual solutions for specific requirements and installation situations.
The EasyClean ground Auto Mix offers many advantages:
- Direct disposal: Disposal via the direct disposal pipe – without opening the tank.
- No odour emissions: The shredder-mix system ensures odourless disposal and cleaning.
- Central control: The shredder-mix system and refill inlet can be controlled via the control unit.
SonicControl
The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

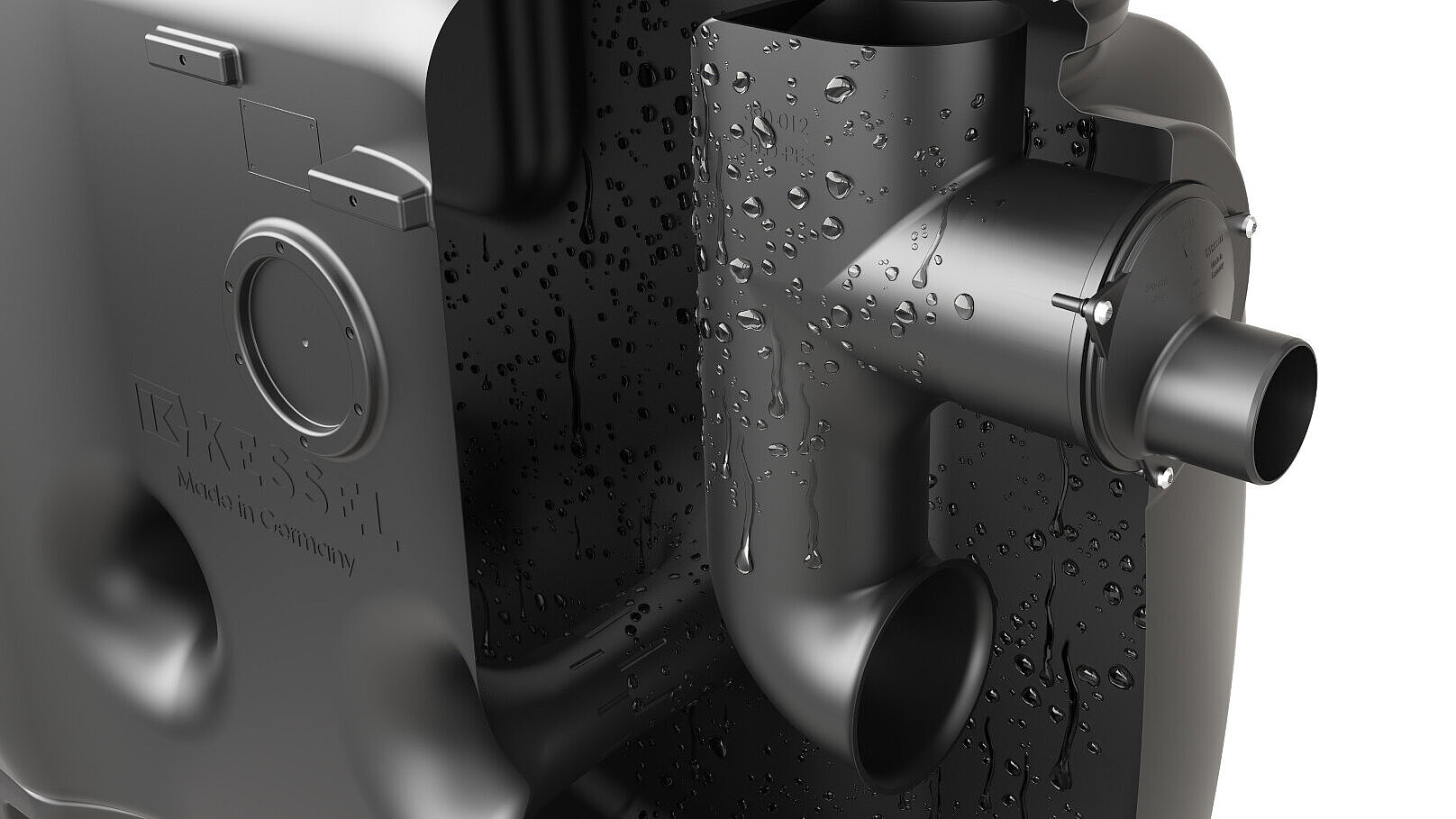

100 % corrosion-free – 20-year guarantee
Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

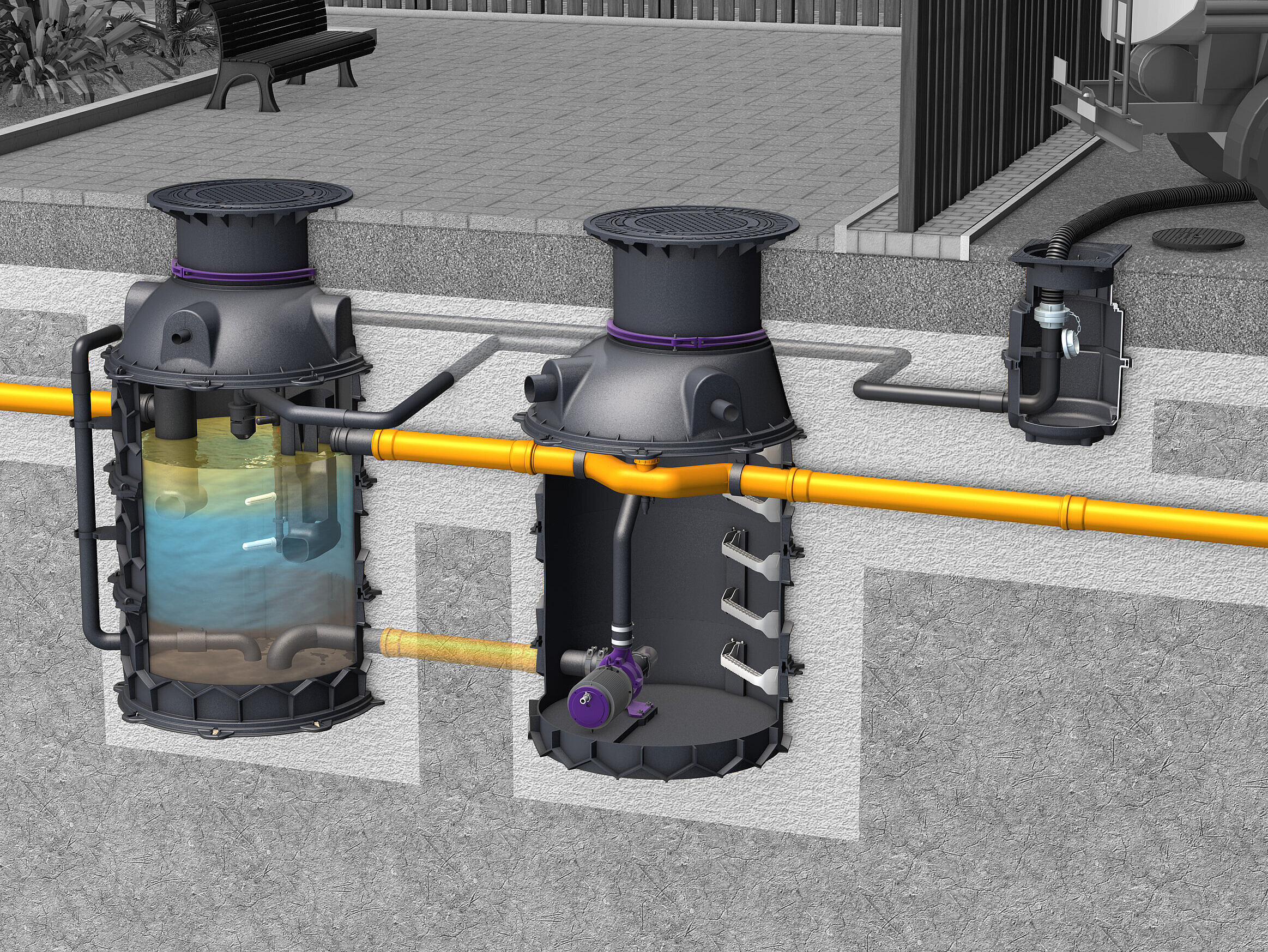

EasyClean ground Auto Mix in the engineering chamber
Installation in the ground, frost-free depth 1200 mm
| Load class | Installation depth | Nominal size (NS) | Total volume | Item no. | ||
|---|---|---|---|---|---|---|
93001/120B-DSP-TS | B 125 (EN 124) | 760 mm | 1 | 370 l | 93001/120B-DSP-TS | Show |
93002/120B-DSP-TS | B 125 (EN 124) | 760 mm | 2 | 570 l | 93002/120B-DSP-TS | Show |
93004/120B-DSP-TS | B 125 (EN 124) | 760 mm | 4 | 770 l | 93004/120B-DSP-TS | Show |
93007/120B-DSP-TS | B 125 (EN 124) | 715 mm | 7 | 1,800 l | 93007/120B-DSP-TS | Show |
93010/120B-DSP-TS | B 125 (EN 124) | 715 mm | 10 | 2,600 l | 93010/120B-DSP-TS | Show |
| Load class | Installation depth | Nominal size (NS) | Total volume | Item no. | ||
|---|---|---|---|---|---|---|
93001/120D-DSP-TS | D 400 (EN 124) | 1,020 mm | 1 | 370 l | 93001/120D-DSP-TS | Show |
93002/120D-DSP-TS | D 400 (EN 124) | 1,020 mm | 2 | 570 l | 93002/120D-DSP-TS | Show |
93004/120D-DSP-TS | D 400 (EN 124) | 1,020 mm | 4 | 770 l | 93004/120D-DSP-TS | Show |
93007/120D-DSP-TS | D 400 (EN 124) | 975 mm | 7 | 1,800 l | 93007/120D-DSP-TS | Show |
93010/120D-DSP-TS | D 400 (EN 124) | 975 mm | 10 | 2,600 l | 93010/120D-DSP-TS | Show |
Installation in the ground, frost-free depth 1700 mm
| Load class | Installation depth | Nominal size (NS) | Total volume | Item no. | ||
|---|---|---|---|---|---|---|
93001/170B-DSP-TS | B 125 (EN 124) | 1,260 mm | 1 | 370 l | 93001/170B-DSP-TS | Show |
93002/170B-DSP-TS | B 125 (EN 124) | 1,260 mm | 2 | 570 l | 93002/170B-DSP-TS | Show |
93004/170B-DSP-TS | B 125 (EN 124) | 1,260 mm | 4 | 770 l | 93004/170B-DSP-TS | Show |
93007/170B-DSP-TS | B 125 (EN 124) | 1,215 mm | 7 | 1,800 l | 93007/170B-DSP-TS | Show |
93010/170B-DSP-TS | B 125 (EN 124) | 1,215 mm | 10 | 2,600 l | 93010/170B-DSP-TS | Show |
| Load class | Installation depth | Nominal size (NS) | Total volume | Item no. | ||
|---|---|---|---|---|---|---|
93001/170D-DSP-TS | D 400 (EN 124) | 1,520 mm | 1 | 370 l | 93001/170D-DSP-TS | Show |
93002/170D-DSP-TS | D 400 (EN 124) | 1,520 mm | 2 | 570 l | 93002/170D-DSP-TS | Show |
93004/170D-DSP-TS | D 400 (EN 124) | 1,520 mm | 4 | 770 l | 93004/170D-DSP-TS | Show |
93007/170D-DSP-TS | D 400 (EN 124) | 1,475 mm | 7 | 1,800 l | 93007/170D-DSP-TS | Show |
93010/170D-DSP-TS | D 400 (EN 124) | 1,475 mm | 10 | 2,600 l | 93010/170D-DSP-TS | Show |
