EasySink sediment separator
ground, NS 2, Class D

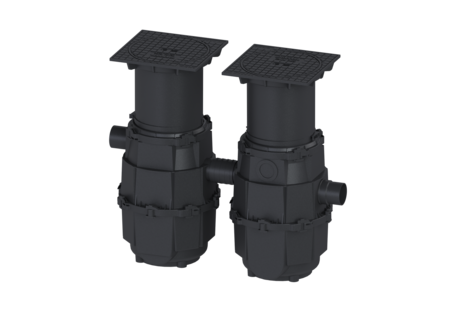

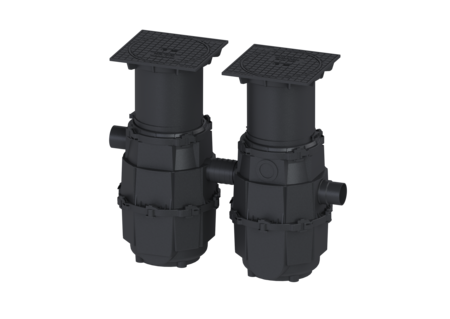

KESSEL EasySink sediment separator, nominal size 2, Cover Grey iron, height 52 mm, underground installation, locking locked
- Waterproof
- resistant to aggressive wastewater
- Odour-tight tank
| Item no. | 97202/00D |
|---|---|
| GTIN | 4026092026915 |
| Price group | 60 |
EasySink sediment separator ground, NS 2, Class D
The sediment separator is suitable for installation in the ground. The collection tank made of permanently resistant polymer (PE) is equipped with a removable sediment tank (NS 2 with two sediment tanks) made of stainless steel and a hole diameter of 5 mm. An odour trap is installed in the outlet. Access for cleaning and maintenance work is possible via one or several service access covers. 20 year polyethylene warranty. Options: Hole diameter of sediment tank: 3, 6, 8, 10, 12, 15 mm Additional price for additional fine screen (mesh size 1.0 mm) Variant Nominal size (NS): 2 Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 91 kg Gross weight: 100 kg Groundwater resistant from lower edge of base section: 500 mm Installation depth: 55 - 405 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 1100 mm Required access area, width: 532 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 875 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 380 mm Distance pipe bottom inlet to tank bottom: 528 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 400 mm Volume of collecting tank: 32 l Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Width of cover: 395 mm Height of cover: 52 mm Length of cover: 395 mm Locking: locked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Odour trap: included Control Control unit: no
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Material (material):
PE
- Installation situation (einbausituation):
underground installation
- Nominal size (NS) (nenngroesse): 2
- Load class (belastungsklasse): D 400 (EN 124)
- Installation depth (einbautiefe): 55 mm
