EasySink sediment separator

free, NS 2

97202/000
Back to table of variants PDF product data sheet

KESSEL EasySink sediment separator, nominal size 2, temperature controlled enclosure, tightness odour-tight, resistant to aggressive wastewater, locking Quick-release closure

  • Waterproof and resistant to aggressive wastewater
  • Odour-tight tank
  • Low-maintenance operation
Item no. 97202/000
GTIN 4026092026885
Price group 60

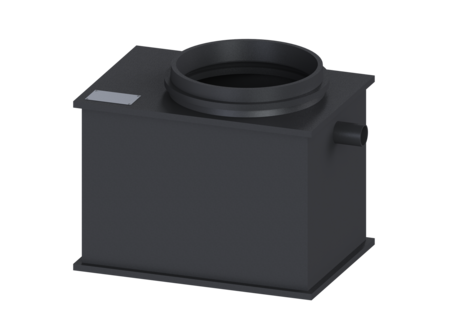

    EasySink sediment separator free, NS 2
    The sediment separator is suitable for exposed installation in frost-protected rooms. The collection tank is equipped with a removable sediment tank (NS 2 with two sediment tanks) both made of permanently resistant polymer (PE). An odour trap is installed in the outlet. An odour-tight cover with quick-release closure makes easy access possible for cleaning and maintenance work. 20 year polyethylene warranty. Variant Nominal size (NS): 2 Type of disposal: manual with suction hose General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Wastewater-resistant: resistant to aggressive wastewater Dimensions Net weight: 50,65 kg Gross weight: 59,45 kg Set-up area, length: 985 mm Set-up area, width: 650 mm Set-up area, height: 598 mm Required access area, length: 800 mm Required access area, width: 650 mm Packaging dimension: length: 800 mm Packaging dimension: width: 650 mm Packaging dimension: height: 500 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 255 mm Distance pipe bottom inlet to tank bottom: 373 mm Outlet nominal size (OD): 75 mm Outlet nominal size (DN): 70 mm Inlet nominal size (OD): 75 mm Inlet nominal size (DN): 70 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Volume of collecting tank: 51 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Width of cover: 630 mm Length of cover: 630 mm Locking: Quick-release closure Tightness: odour-tight Odour trap: included Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 2
    • Gross weight (gewicht_brutto): 59.5  kg
    • Set-up area, width (aufstellflaeche_breite): 650  mm
    • Set-up area, length (aufstellflaeche_laenge): 985  mm
