EasySink sediment separator

free, NS 1

97201/000
PDF product data sheet

KESSEL EasySink sediment separator, nominal size, temperature controlled enclosure, tightness odour-tight, resistant to aggressive wastewater, locking Quick-release closure

  • Waterproof and resistant to aggressive wastewater
  • Odour-tight tank
  • Low-maintenance operation
Item no. 97201/000
GTIN 4026092026830
Price group 60

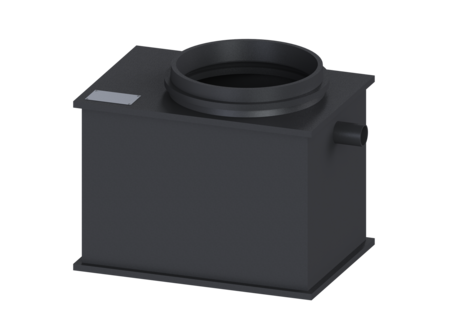

    EasySink sediment separator free, NS 1
    The sediment separator is suitable for exposed installation in frost-protected rooms. The collection tank is equipped with a removable sediment tank (NS 2 with two sediment tanks) both made of permanently resistant polymer (PE). An odour trap is installed in the outlet. An odour-tight cover with quick-release closure makes easy access possible for cleaning and maintenance work. 20 year polyethylene warranty. Variant Nominal size (NS): 1 Type of disposal: manual with suction hose General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Wastewater-resistant: resistant to aggressive wastewater Dimensions Net weight: 19 kg Gross weight: 23 kg Set-up area, length: 660 mm Set-up area, width: 400 mm Set-up area, height: 470 mm Required access area, length: 570 mm Required access area, width: 400 mm Packaging dimension: length: 645 mm Packaging dimension: width: 530 mm Packaging dimension: height: 570 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 195 mm Distance pipe bottom inlet to tank bottom: 305 mm Outlet nominal size (OD): 50 mm Outlet nominal size (DN): 50 mm Inlet nominal size (OD): 50 mm Inlet nominal size (DN): 50 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 305 mm Volume of collecting tank: 13 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Width of cover: 370 mm Length of cover: 370 mm Locking: Quick-release closure Tightness: odour-tight Odour trap: included Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 1
    • Gross weight (gewicht_brutto): 23  kg
    • Set-up area, width (aufstellflaeche_breite): 400  mm
    • Set-up area, length (aufstellflaeche_laenge): 660  mm
