Grease separator EasyClean free
Basic, NS7, Std, lft, Insp wind, Ref in
KESSEL Grease separator EasyClean free, disposal Standard, nominal size 7, free-standing installation, type of disposal manual with suction hose, yes, yes, flow direction left
- Low-maintenance operation
| Item no. | 94007.32L |
|---|---|
| GTIN | 4026092083864 |
| Price group | 60 |

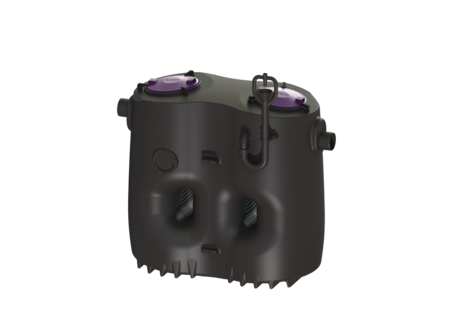

Grease separator EasyClean free Basic, NS7, Std, lft, Insp wind, Ref in
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. Two odour-tight covers with quick-release closures allow for easy access for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Direction of flow: left Disposal variant: Standard Sludge bucket: yes Nominal size (NS): 7 Refill inlet in accordance with DIN 1988: yes Type of disposal: manual with suction hose Sampling device: no Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 150 kg Gross weight: 180 kg Set-up area, length: 1960 mm Set-up area, width: 1080 mm Set-up area, height: 2000 mm Required access area, length: 1960 mm Required access area, width: 965 mm Required access area, height: 1670 mm Packaging dimension: length: 2200 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 1804 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1185 mm Distance pipe bottom inlet to tank bottom: 1255 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Max. grease layer thickness: 230 mm Total volume: 1370 l Contents of sludge trap: 700 l Storage quantity of grease: 280 l
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Performance |
- Material (material):
PE
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
free-standing installation
- Nominal size (NS) (nenngroesse): 7
- Inlet nominal size (DN) (zulauf_nennweite_dn): 150 mm
- Outlet nominal size (DN) (auslauf_nennweite_dn): 150 mm
