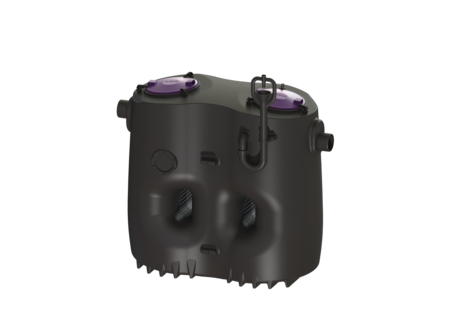

Grease separator EasyClean free
Basic, NS 7, Direct, left, wind., Refill
KESSEL Grease separator EasyClean free, disposal Direct, nominal size 7, free-standing installation, type of disposal manual, locking Quick-release closure, flow direction left, yes, yes
- Odour-reduced disposal with the tank closed
- Low-maintenance operation
| Item no. | 94007.32DL |
|---|---|
| GTIN | 4026092083840 |
| Price group | 60 |
Grease separator EasyClean free Basic, NS 7, Direct, left, wind., Refill
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. Two odour-tight covers with quick-release closures allow for easy access for cleaning and maintenance work. There is a direct disposal pipe socket available for odour-reduced manual disposal. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. 20 year polyethylene warranty. Variant Direction of flow: left Disposal variant: Direct Sludge bucket: yes Nominal size (NS): 7 Refill inlet in accordance with DIN 1988: yes Type of disposal: manual Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 144 kg Gross weight: 174 kg Set-up area, length: 1960 mm Set-up area, width: 1140 mm Set-up area, height: 2000 mm Required access area, length: 1960 mm Required access area, width: 965 mm Required access area, height: 1670 mm Packaging dimension: length: 2200 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 1804 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1185 mm Distance pipe bottom inlet to tank bottom: 1255 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Max. grease layer thickness: 230 mm Total volume: 1370 l Contents of sludge trap: 700 l Storage quantity of grease: 280 l
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Performance |
- Material (material):
PE
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
free-standing installation
- Nominal size (NS) (nenngroesse): 7
- Inlet nominal size (DN) (zulauf_nennweite_dn): 150 mm
- Outlet nominal size (DN) (auslauf_nennweite_dn): 150 mm
