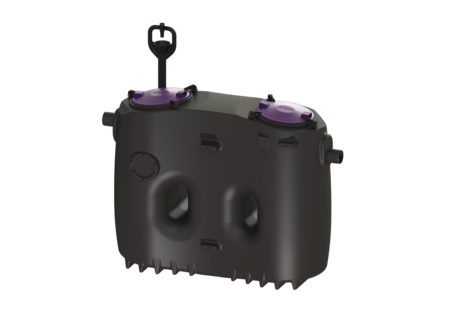

Grease separator EasyClean free

Basic, NS 4, Stand, right, Refill inlet

94004.12R
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Standard, nominal size 4, free-standing installation, type of disposal manual with suction hose, yes, no, flow direction right

  • Low-maintenance operation
Item no. 94004.12R
GTIN 4026092083833
Price group 60

    Grease separator EasyClean free Basic, NS 4, Stand, right, Refill inlet
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. Two odour-tight covers with quick-release closures allow for easy access for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Direction of flow: right Disposal variant: Standard Sludge bucket: no Nominal size (NS): 4 Refill inlet in accordance with DIN 1988: yes Type of disposal: manual with suction hose Sampling device: no Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 99,5 kg Gross weight: 129,5 kg Set-up area, length: 1960 mm Set-up area, width: 810 mm Set-up area, height: 1800 mm Required access area, length: 1960 mm Required access area, width: 700 mm Required access area, height: 1420 mm Packaging dimension: length: 2200 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 1554 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Max. grease layer thickness: 180 mm Total volume: 820 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l
      Title Item no.
      Title Item no.
      Title Item no.
    913109 Inspection window for EasyClean grease separator 913109 Show
    915700-100 distribution box DN 100 inlet, DN 100 drains 915700-100 Show
    915870 Sampling system DN 100/150, Vertical outlet 915870 Show
    915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
    919010 Automatic water refilling EasyFill, Control unit w. solenoid valve 919010 Show
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 4
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 100  mm
