Grease separator EasyClean free
Basic, NS2, Std, right, Insp wind

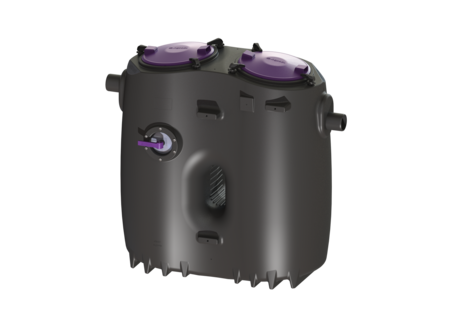

KESSEL Grease separator EasyClean free, disposal Standard, nominal size 2, free-standing installation, type of disposal manual with suction hose, no, yes, flow direction right
- Low-maintenance operation
| Item no. | 94002.21R |
|---|---|
| GTIN | 4026092084038 |
| Price group | 60 |
Grease separator EasyClean free Basic, NS2, Std, right, Insp wind
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. Two odour-tight covers with quick-release closures allow for easy access for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Direction of flow: right Disposal variant: Standard Sludge bucket: yes Nominal size (NS): 2 Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Sampling device: no Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 73 kg Gross weight: 98 kg Set-up area, length: 1560 mm Set-up area, width: 745 mm Set-up area, height: 1420 mm Required access area, length: 1560 mm Required access area, width: 745 mm Required access area, height: 1420 mm Packaging dimension: length: 1900 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 1554 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Max. grease layer thickness: 120 mm Total volume: 660 l Contents of sludge trap: 200 l Storage quantity of grease: 80 l
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Performance |
- Material (material):
PE
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
free-standing installation
- Nominal size (NS) (nenngroesse): 2
- Inlet nominal size (DN) (zulauf_nennweite_dn): 100 mm
- Outlet nominal size (DN) (auslauf_nennweite_dn): 100 mm
