EasyClean round grease separator

free, NS 10, Auto Mix & Pump

PDF product data sheet

KESSEL EasyClean round grease separator, nominal size 10, disposal Auto Mix & Pump, free-standing installation, type of disposal automatic cleaning system, tightness odour-tight

  • Clean and odour-free disposal and cleaning
  • Customisation possible through control unit
  • Clean and odour-free disposal and cleaning

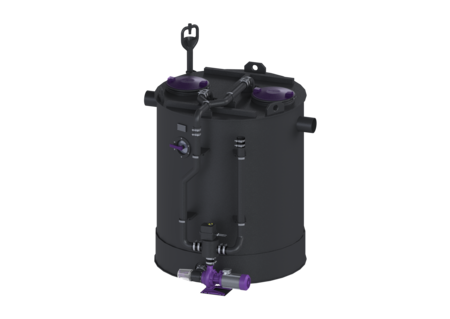

Item no. 93010.05/PVS
Price group 60

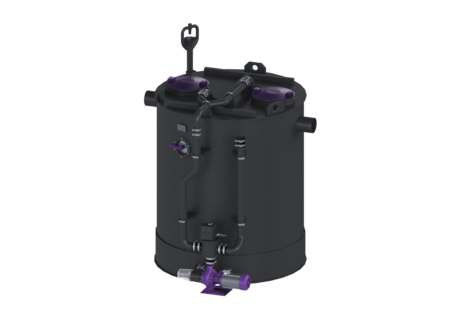

    EasyClean round grease separator free, NS 10, Auto Mix & Pump
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix System with integrated macerating system homogenises and circulates the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and actuator, which can be disconnected from the tank by a shut-off valve. The fully-automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system via a potential-free contact. Cleaning and disposal can be started remotely using the remote control, which is available as an option. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. Compliance with the German Drinking Water Hygiene Ordinance can be ensured by fully-automatic rinsing of the drinking water pipes. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Auto Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 10 SonicControl: no Disposal system: Disposal connection Type of disposal: automatic cleaning system Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 350 kg Gross weight: 350 kg Set-up area, length: 1900 mm Set-up area, width: 1690 mm Set-up area, height: 1910 mm Required access area, length: 1900 mm Required access area, width: 1690 mm Required access area, height: 1910 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1500 mm Distance pipe bottom inlet to tank bottom: 1570 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2500 l Total volume: 1500 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l
      Title Item no.
      Title Item no.
      Title Item no.
    72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
    915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    • Disposal variant (entsorgungsvariante): Auto Mix & Pump
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Disposal system (entsorgungseinrichtung): Disposal connection
    • Installation situation (einbausituation): free-standing installation
    • Shredder-Mix-System (schredder_mix_system): yes
    • Nominal size (NS) (nenngroesse): 10
    • Sludge bucket (schauglas): yes
